Vehicle Ethernet Converter Product Introduction
Performance parameter
Product Model
Video

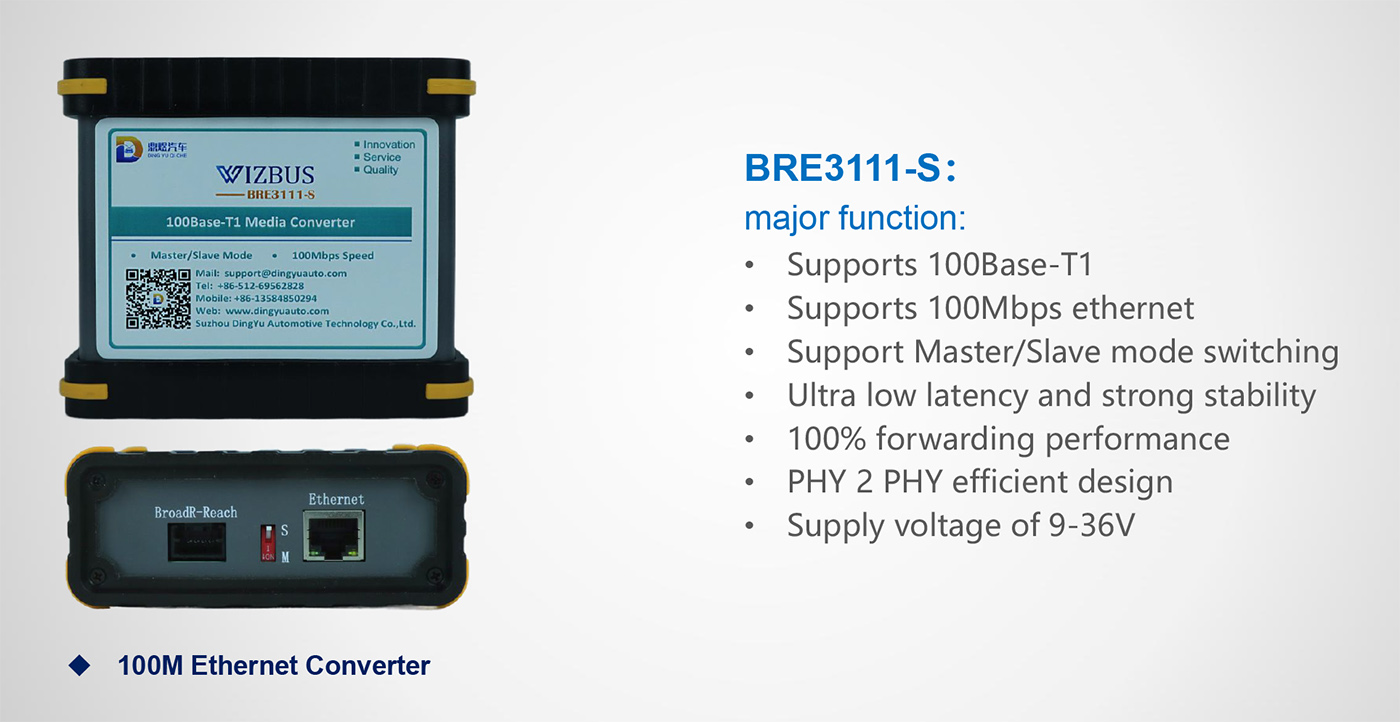

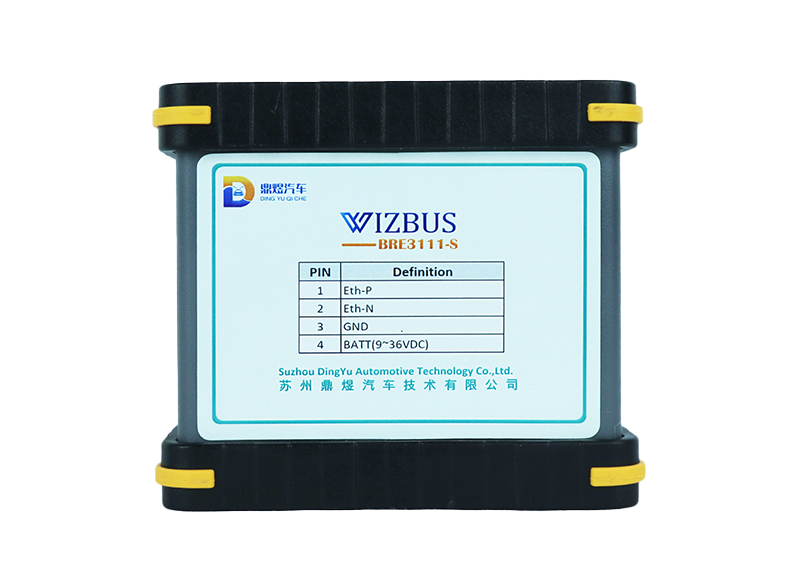

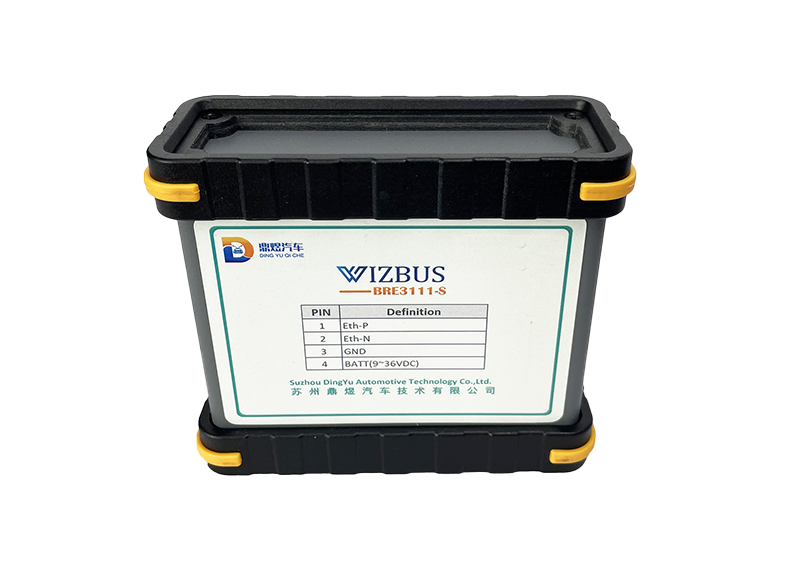

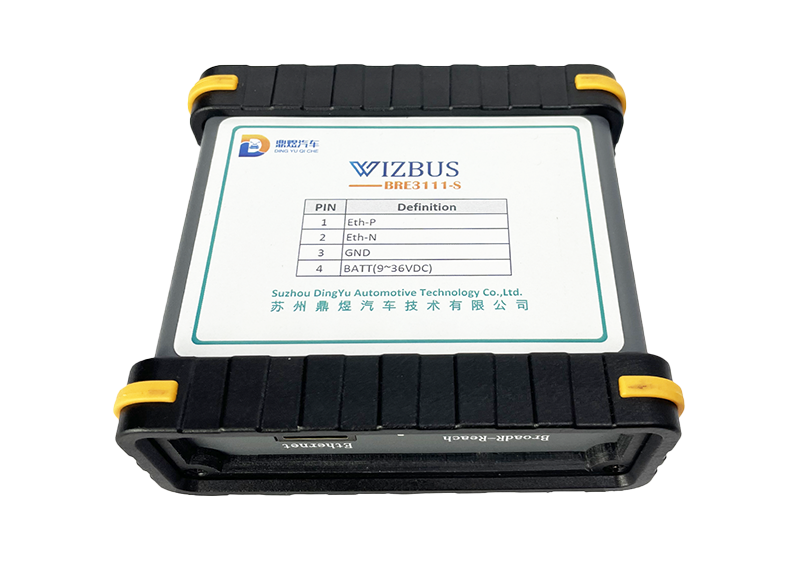

BRE3111-S

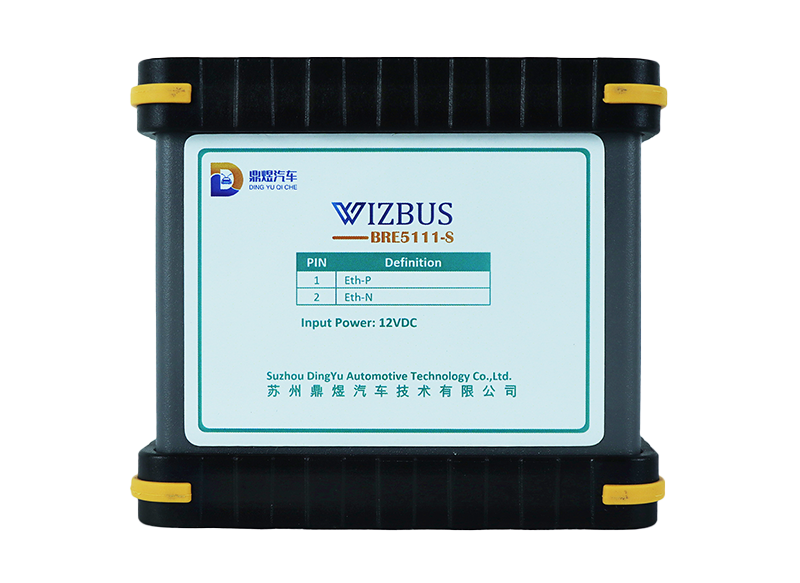

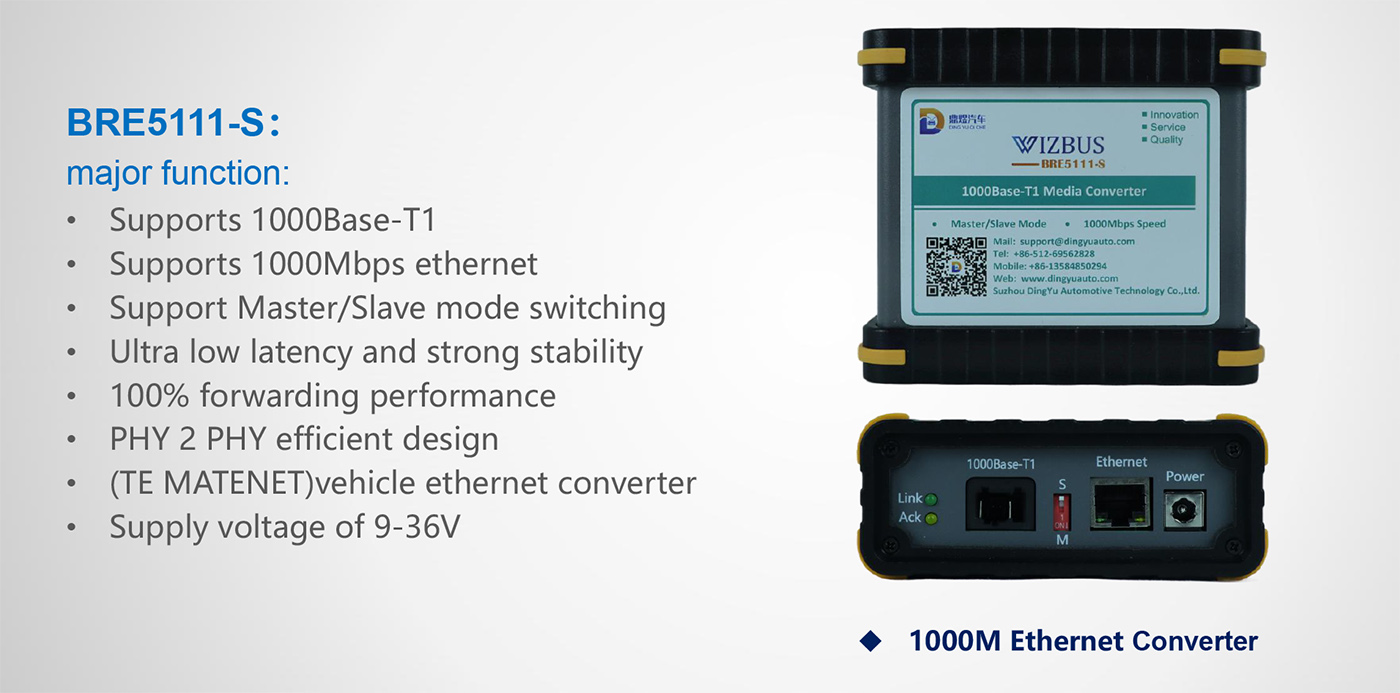

BRE5111-S

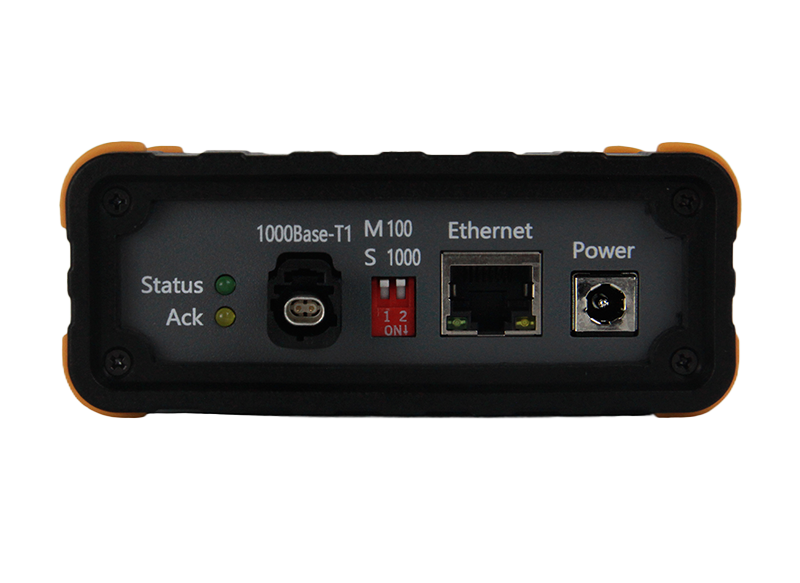

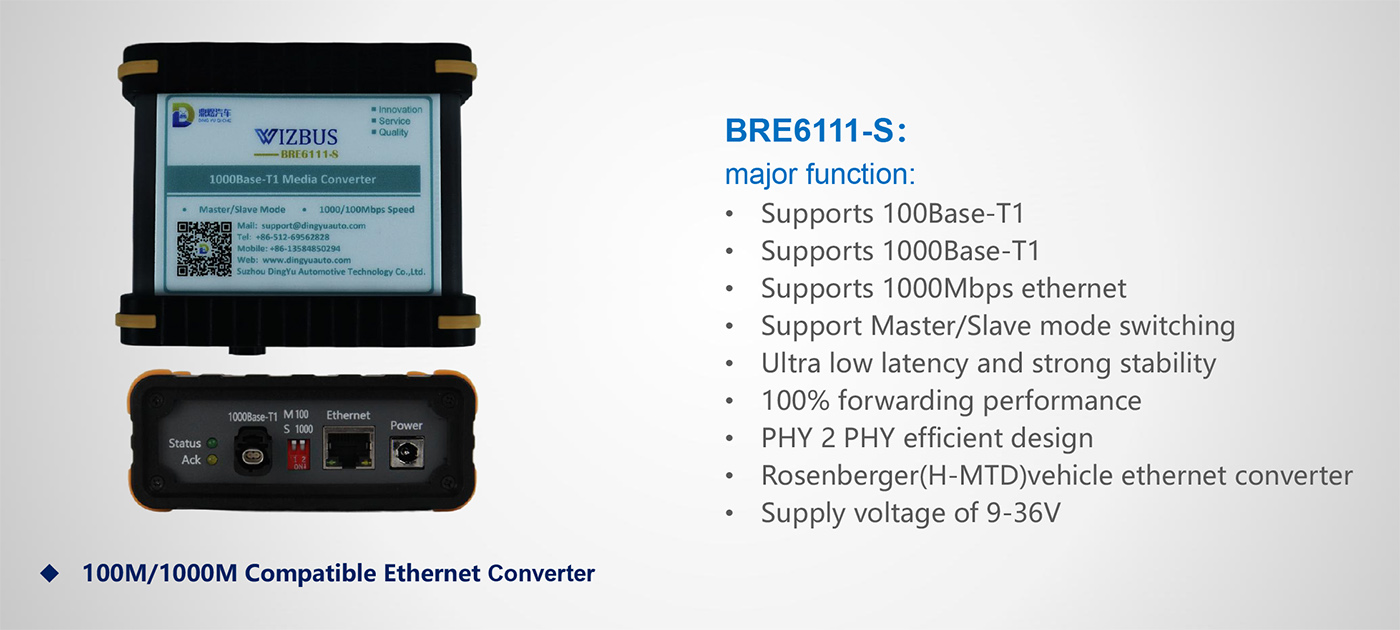

BRE6111-S

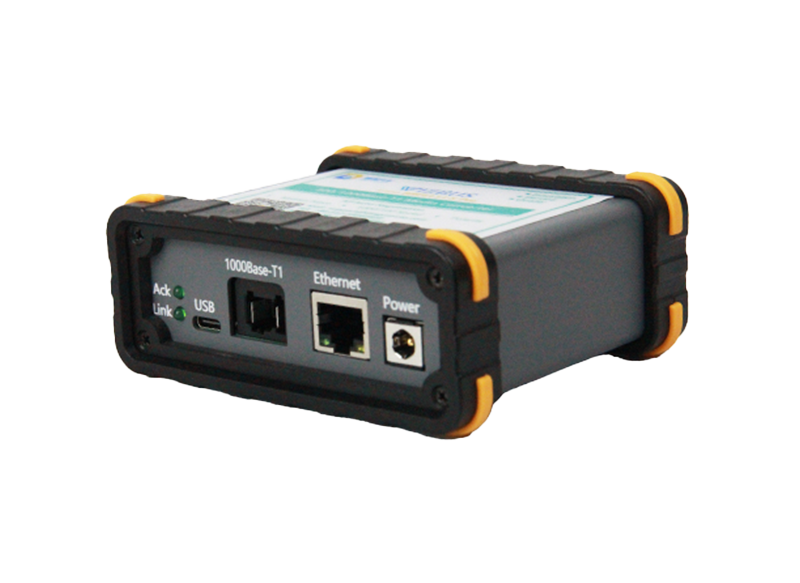

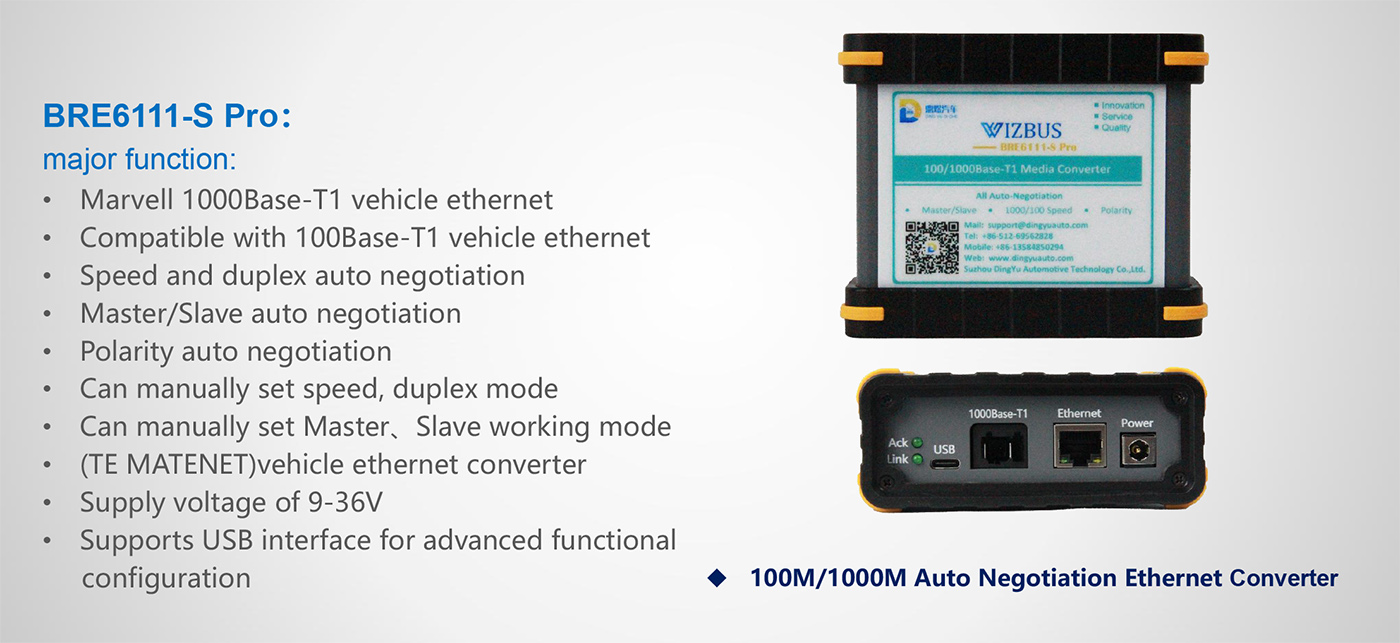

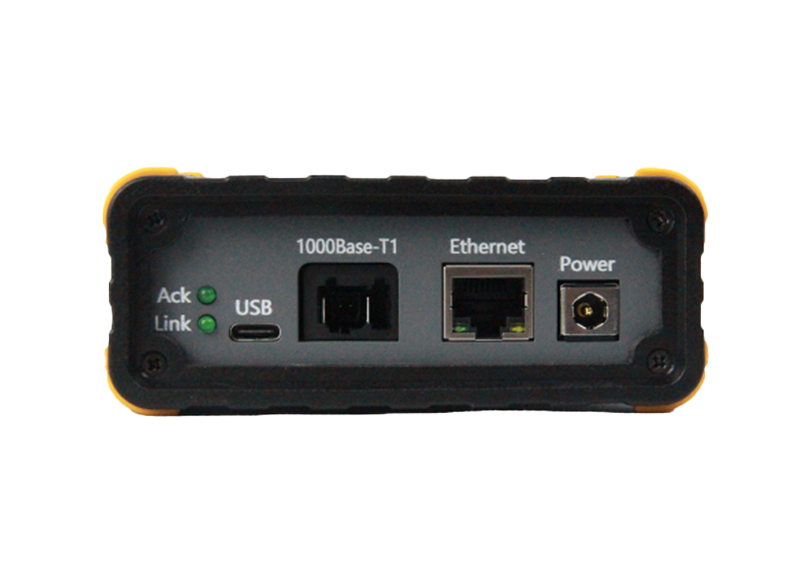

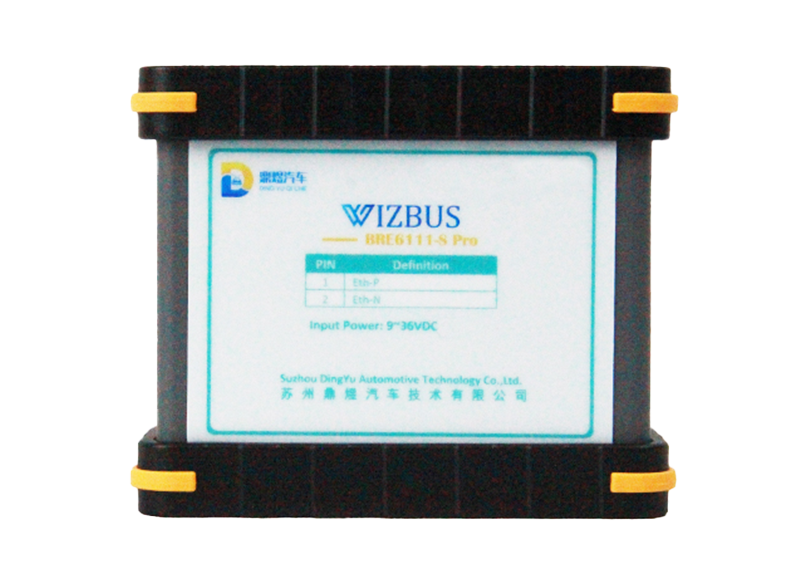

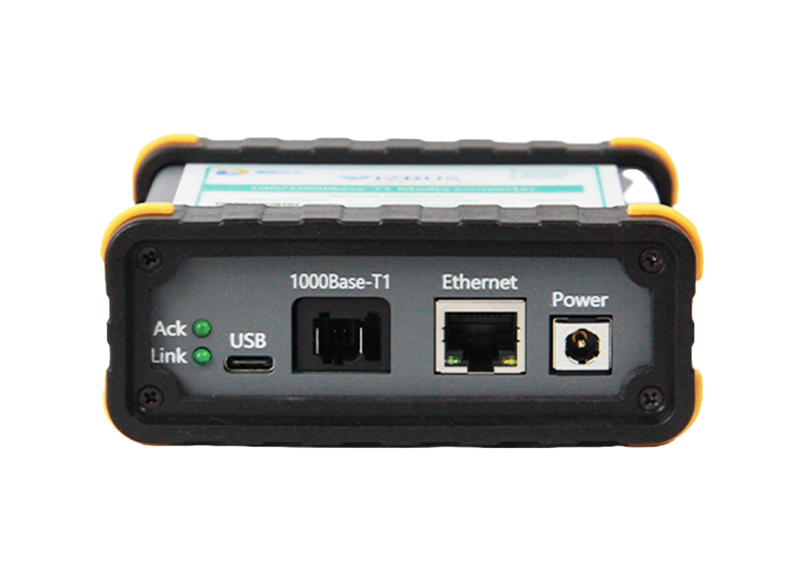

BRE6111-S Pro

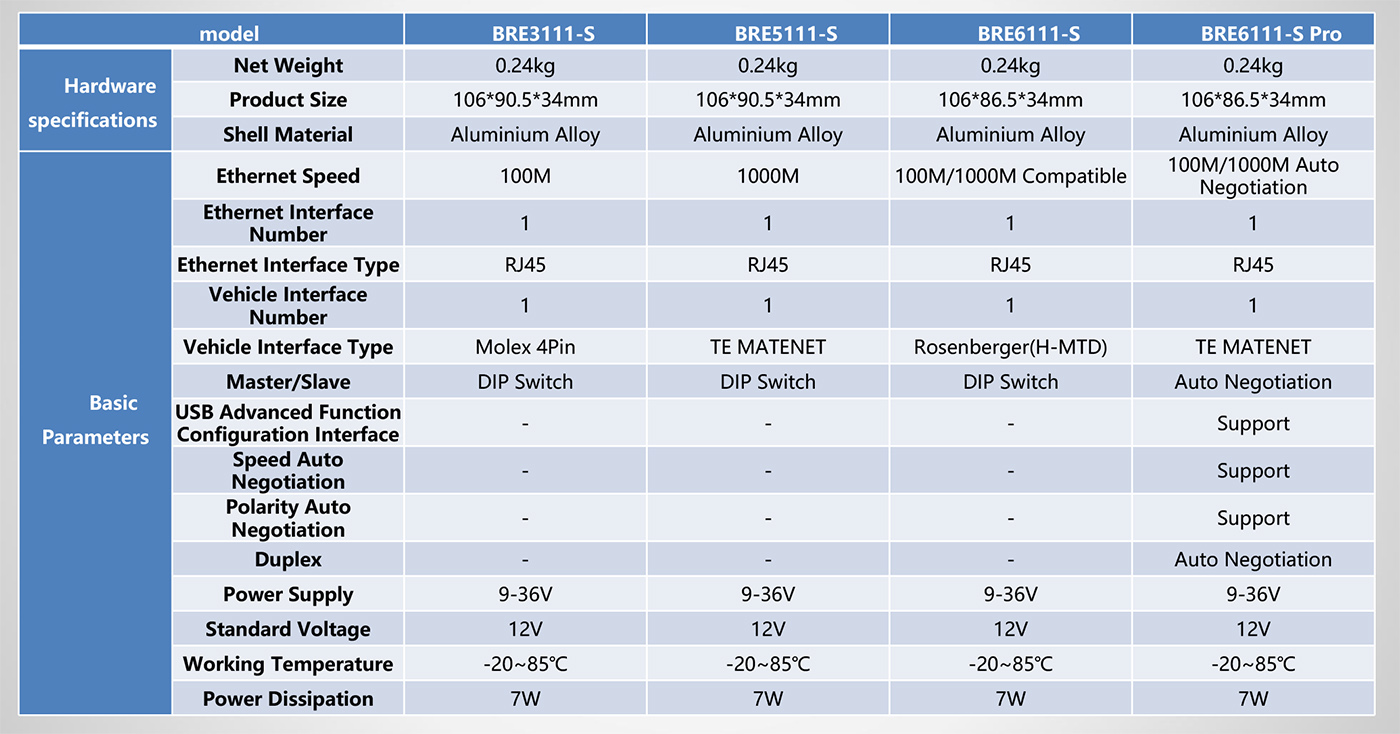

| Product Model | BRE3111-S | BRE5111-S | BRE6111-S | BRE6111-S Pro | |
Hardware Specifications | Net Weight | 0.24kg | 0.24kg | 0.24kg | 0.24kg |
Product Size | 106*90.5*34mm | 106*90.5*34mm | 106*86.5*34mm | 106*86.5*34mm | |
Shell Material | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | |
Basic Parameters | Ethernet Speed | 100M | 1000M | 100M/1000M Compatible | 100M/1000M Auto Negotiation |
Ethernet Interface Number | 1 | 1 | 1 | 1 | |
Ethernet Interface Type | RJ45 | RJ45 | RJ45 | RJ45 | |
Vehicle Interface Number | 1 | 1 | 1 | 1 | |
Vehicle Interface Type | Molex 4Pin | TE MATENET | Rosenberger(H-MTD) | TE MATENET | |
Master/Slave | DIP Switch | DIP Switch | DIP Switch | Auto Negotiation | |
Speed Auto Negotiation | － | － | － | Support | |
Polarity Auto Negotiation | － | － | － | Support | |
Duplex | － | － | － | Auto Negotiation | |
Power Supply | 9-36V | 9-36V | 9-36V | 9-36V | |
Standard Voltage | 12V | 12V | 12V | 12V | |
Electrical Isolation | √ | √ | √ | √ | |
Industrial Grade | √ | √ | √ | √ | |
Working Temperature | -20~85℃ | -20~85℃ | -20~85℃ | -20~85℃ | |
Power Dissipation | 7W | 7W | 7W | 7W | |
>
