Fault Injection

Sin Signal Attenuation

0~100%

Cos Signal Attenuation

0~100%

Sin/Cos Short Circuit

Sin/Cos Phase Deviation

0~360

Temperature Simulation

Simulation Range

0~5000mV

Communication Methods

RS232

Modbus，9600

CAN

500Kbps

Basic parameters

Speed Range

-30000~30000 RPM（4-polar pair）

Electrical Angle

0~360o

Polar Pair Range

1~32

Transformer Ratio

0~0.5（default 0.286）

Single channel

Output Voltage

≤±5V

Amplitude Error

≤±2%

Signal Delay

<0.5us

Load Current

≤20mA

Output Resistance

0.01Ω

Nonlinearity

≤±0.4%

Output Noise

f = 10Hz to 10kHz 60uV rms ;

Between sine and cosine channels

Amplitude Deviation

≤±0.1%

Speed Error

≤±0.05%

Angle Error

≤±0.2 degrees

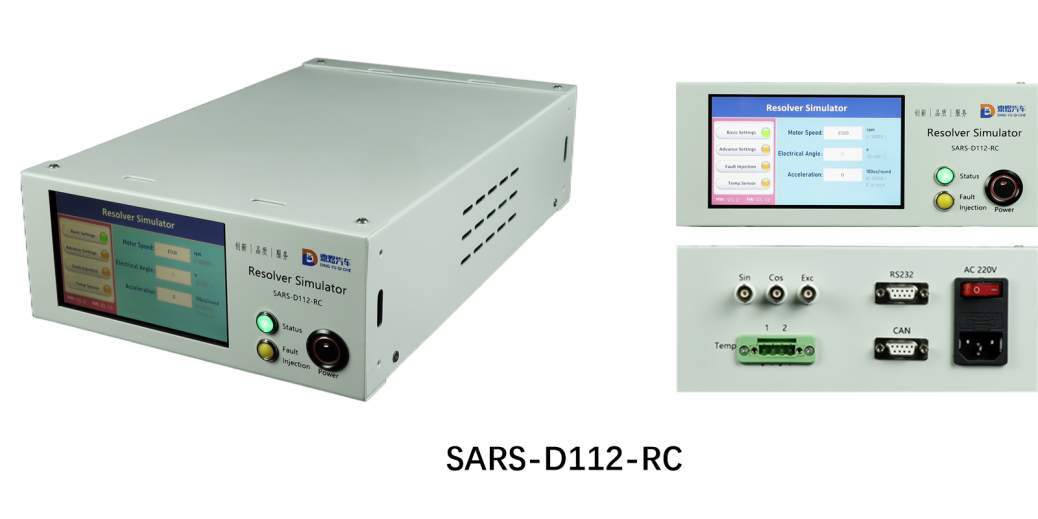

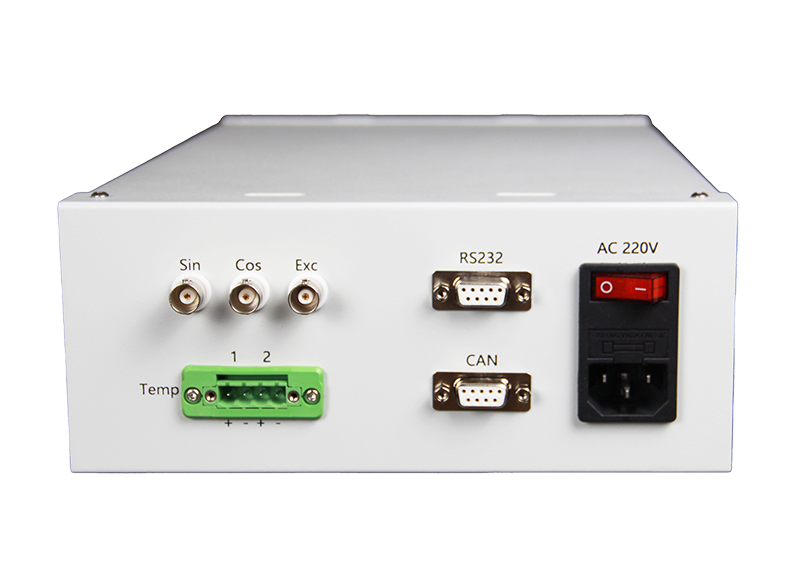

SARS-D112-RC

1

RS232/CAN

5-inch

External Signal

2

2U half width

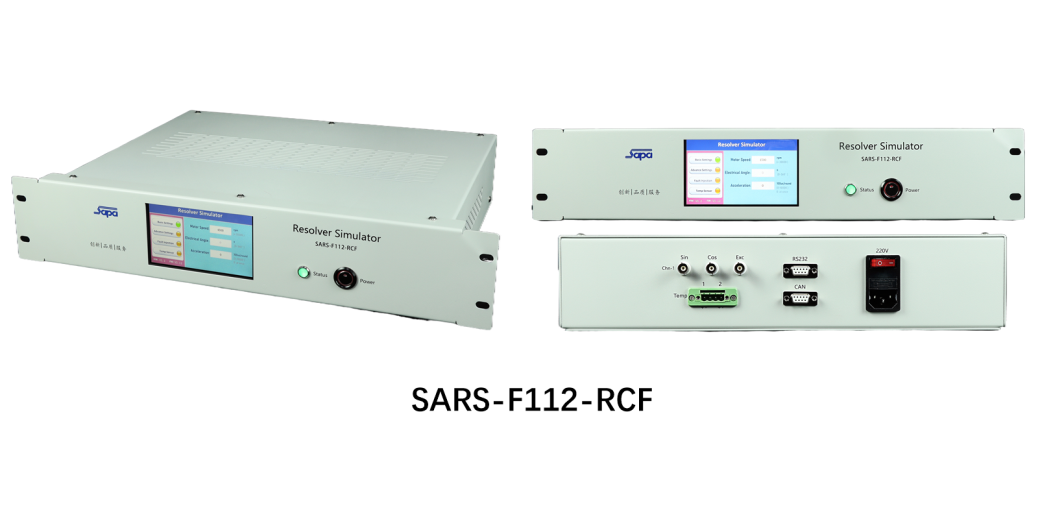

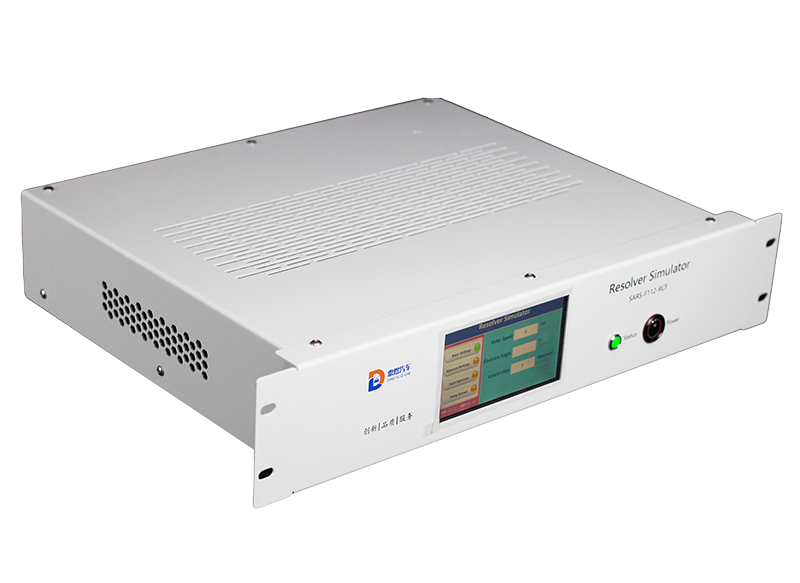

SARS-F112-RCF

1

RS232/CAN

5-inch

External Signal

2

2U full width

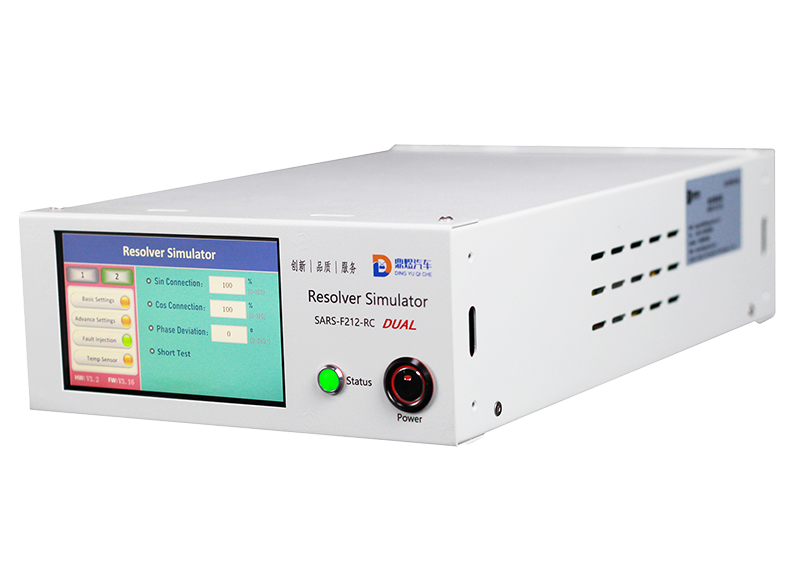

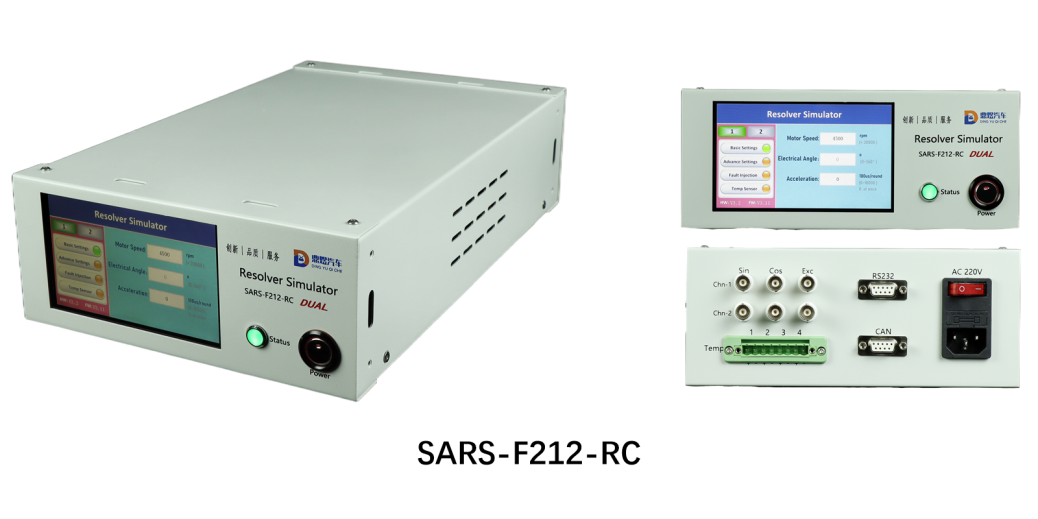

SARS-F212-RC

2

RS232/CAN

5-inch

External Signal

4

2U half width

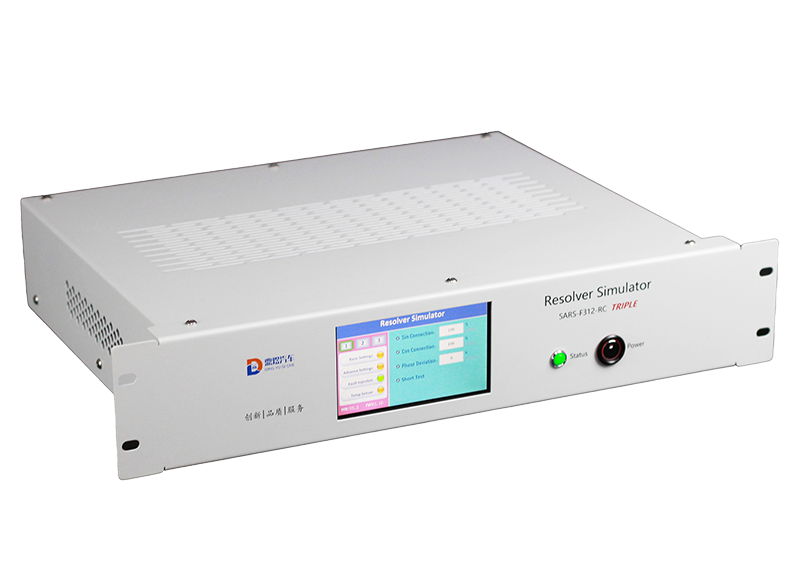

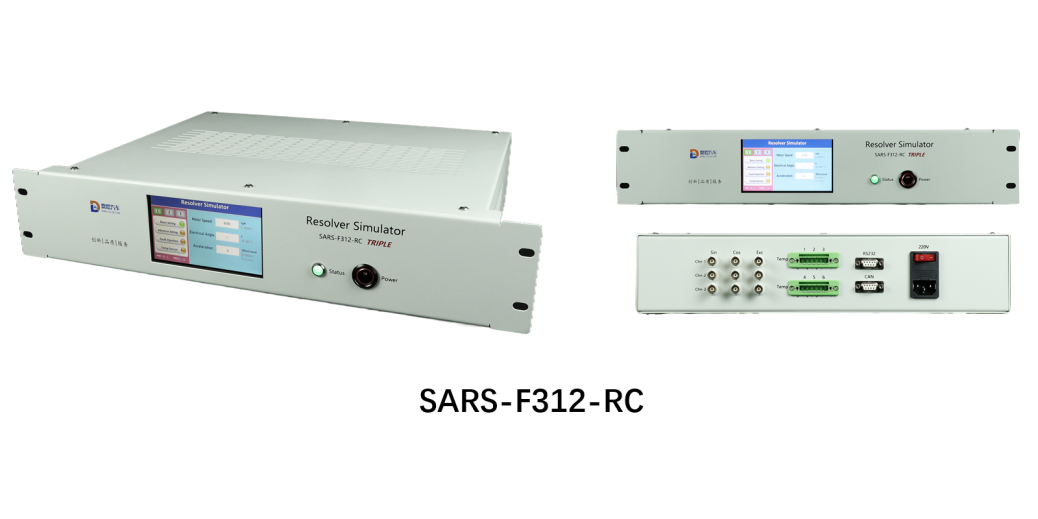

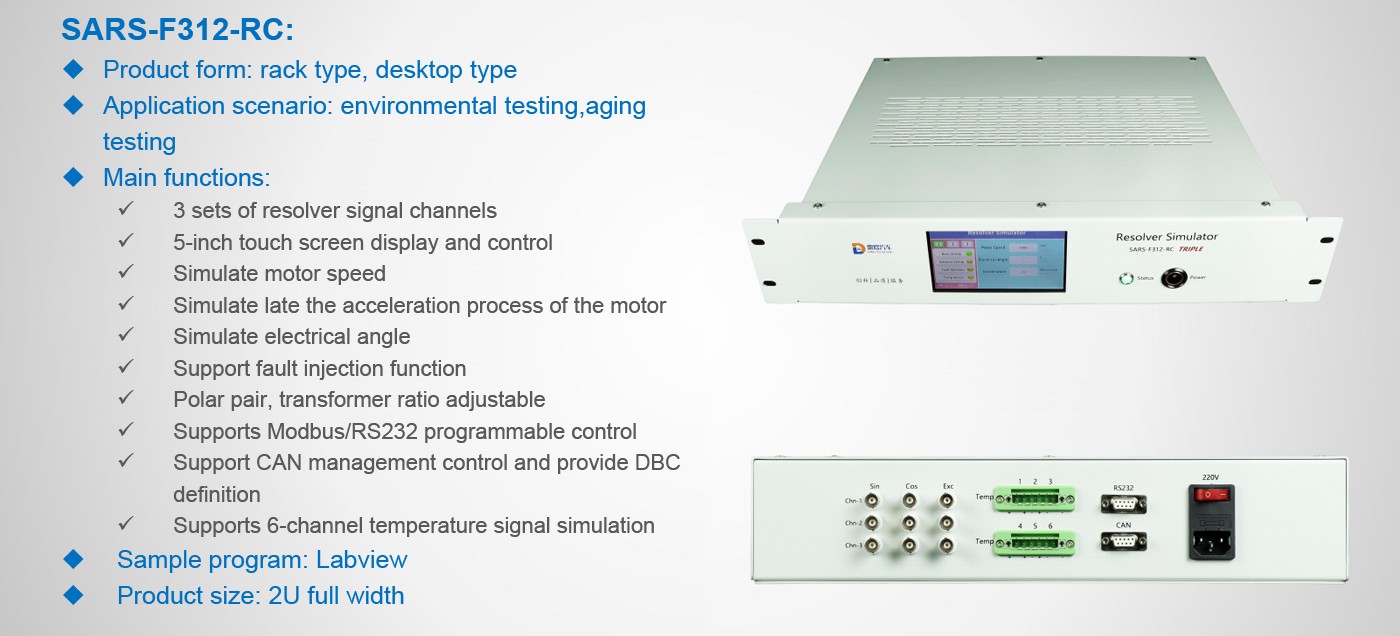

SARS-F312-RC

3

RS232/CAN

5-inch

External Signal

6

2U full width

Channel Nnumber

1   Channel

1   Channel

2   Channels

3   Channels

Application Scenario

Software   test, functional test

Production   test, functional test

For   dual motor test

For   DV and aging test

Speed Range

:+/-30000 rpm

:+/-30000 rpm

:+/-30000 rpm

:+/-30000 rpm

Angle Range

0-360   degrees

0-360   degrees

0-360   degrees

0-360   degrees

Angle Accuracy

≤±0.2   degrees

≤±0.2   degrees

≤±0.2   degrees

≤±0.2   degrees

Display

5-inch   capacitive touch screen

5-inch   capacitive touch screen

5-inch   capacitive touch screen

5-inch   capacitive touch screen

Temperature Sensors Number

2   sensors

2   sensors

4   sensors

6   sensors

Fault Injection Types

Signal   attenuation, phase deviation, short circuit

Signal   attenuation, phase deviation, short circuit

Signal   attenuation, phase deviation, short circuit

Signal   attenuation, phase deviation, short circuit

Polar Pair Range

1-100

1-100

1-100

1-100

Transformer Ratio

0-0.5

0-0.5

0-0.5

0-0.5

Acceleration

Support

Support

Support

Support

Exciting Signal Rate Frequency

2K~50Khz

2K~50Khz

2K~50Khz

2K~50Khz

Excitation Signal Amplitude

≤±24V

≤±24V

≤±24V

≤±24V

Signal delay

<0.5us

<0.5us

<0.5us

<0.5us

Interface

RS232（Modbus）

RS232（Modbus）

RS232（Modbus）

RS232（Modbus）

CAN（500Kbps）

CAN（500Kbps）

CAN（500Kbps）

CAN（500Kbps）

Software

Resolver   simulator test software

Resolver   simulator test software

Resolver   simulator test software

Resolver   simulator test software

SDK basing on Labview and protocol documents

SDK   basing on Labview and protocol documents

SDK   basing on Labview and protocol documents

SDK   basing on Labview and protocol documents

Channel Nnumber

1

1

2

3

Hardware   Specifications

Net   Weight

4.165kg

7.240kg

4.355kg

7.49kg

Gross Weight

5kg

9kg

5.5kg

9.5kg

Product Size

208*341*87mm

400*339.5*88.9mm

208*341*87mm

400*339.5*88.9mm

Package Size

45*30*15cm

60*45*15cm

45*30*15cm

60*45*15cm

Basic Parameters

Speed   Range

-30000~30000   RPM

Electrical Angle Range

0~360^o

Polar Pair Range

1~100

Exciting Signal Rate Frequency

2K~50KHz

Excitation Signal Amplitude

1~24V（peak   to peak）

Maximum Rated Power

30W

Minimum Rated Power

15W

Consumption

18W

Single Channel

Output   Voltage

≤12V（peak   to peak）

Amplitude Error

≤±2%

Load Current

≤20mA

Output Resistance

0.01Ω

Nonlinearity

≤±0.4%

Noise Density

1µV/√Hz

Broadband Noise

f =   10Hz to 10kHz 60uV rms ;

f = 10Hz to 5MHz 600uV rms

Signal Delay

≤ 0.5   μs

Between Sine And Cosine Channels

Amplitude   Deviation

≤±0.1%

Speed Error

≤±0.05%
