Eddy Current Simulator Product Introduction
Performance parameter
Products List

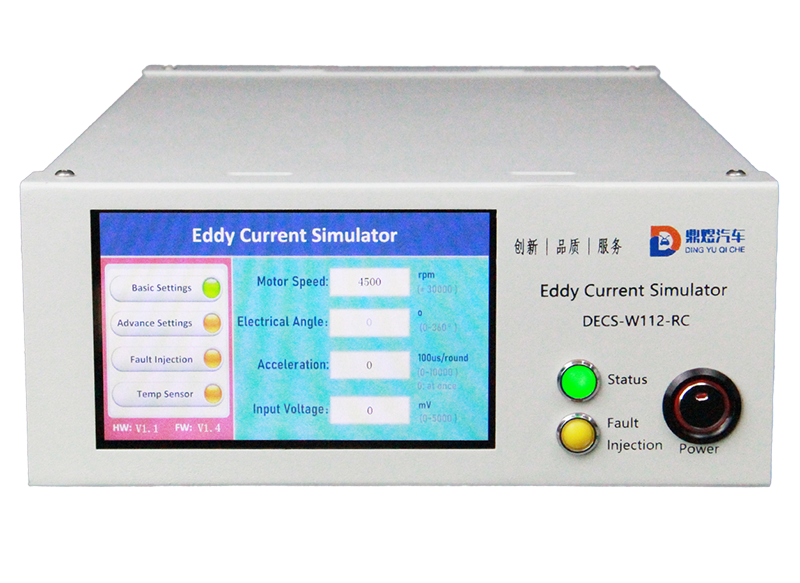

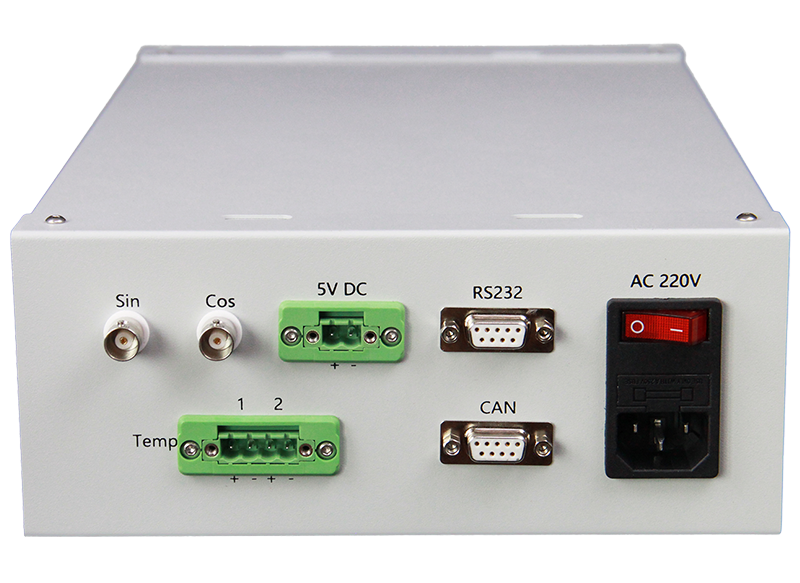

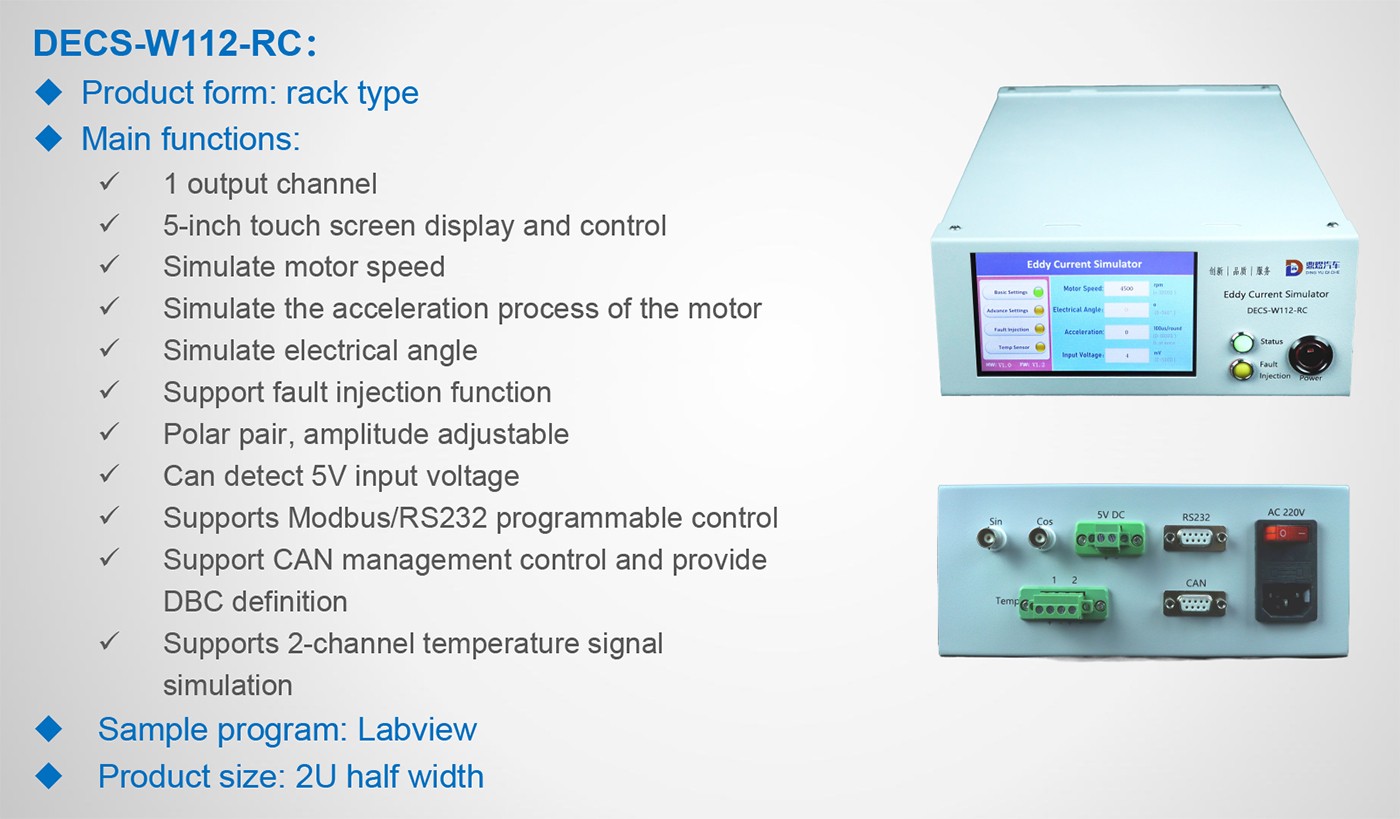

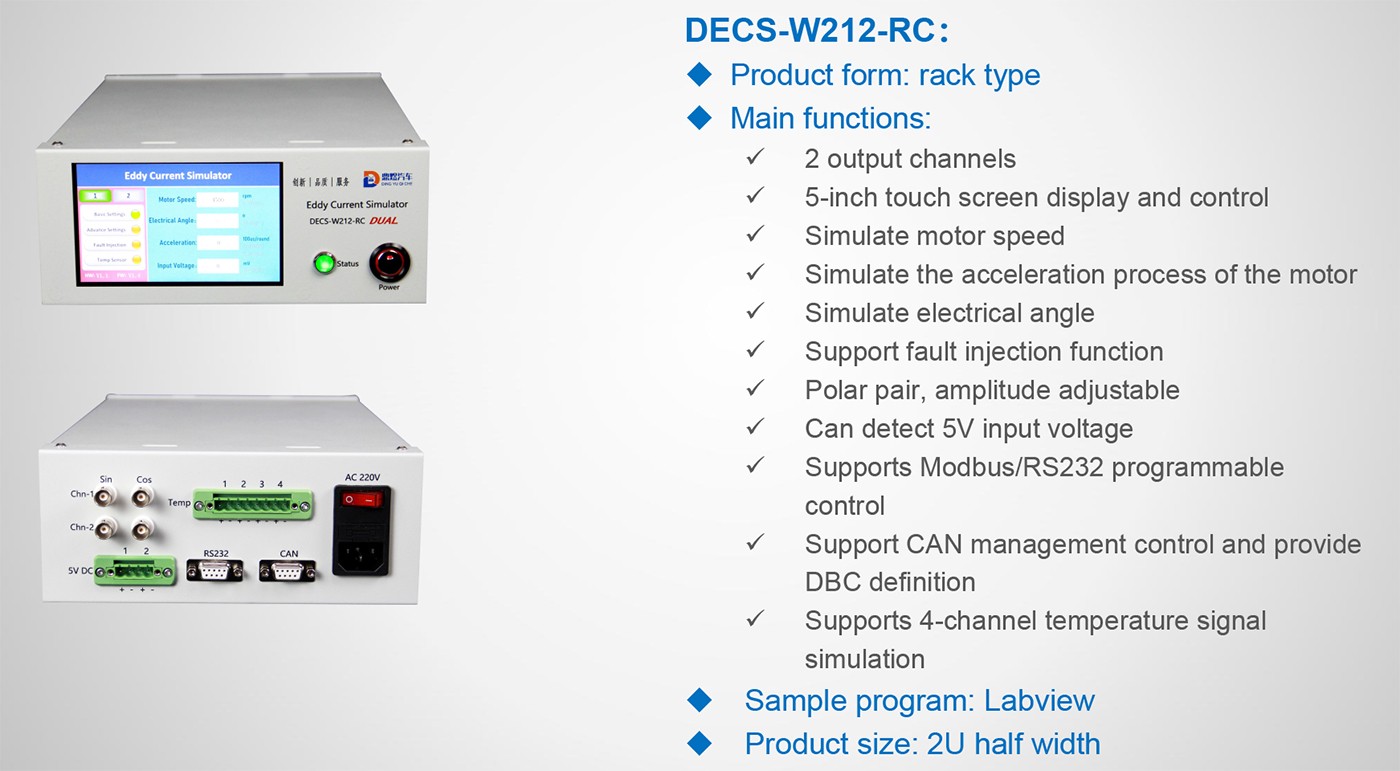

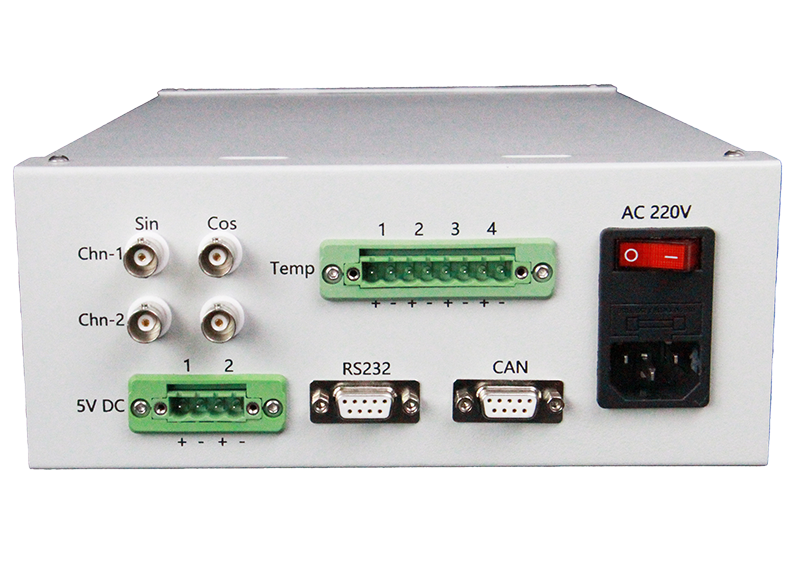

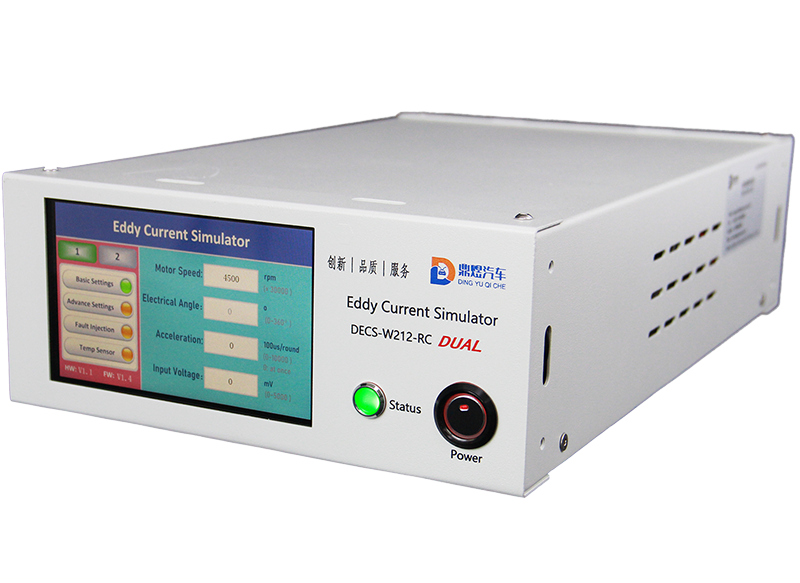

Product Model

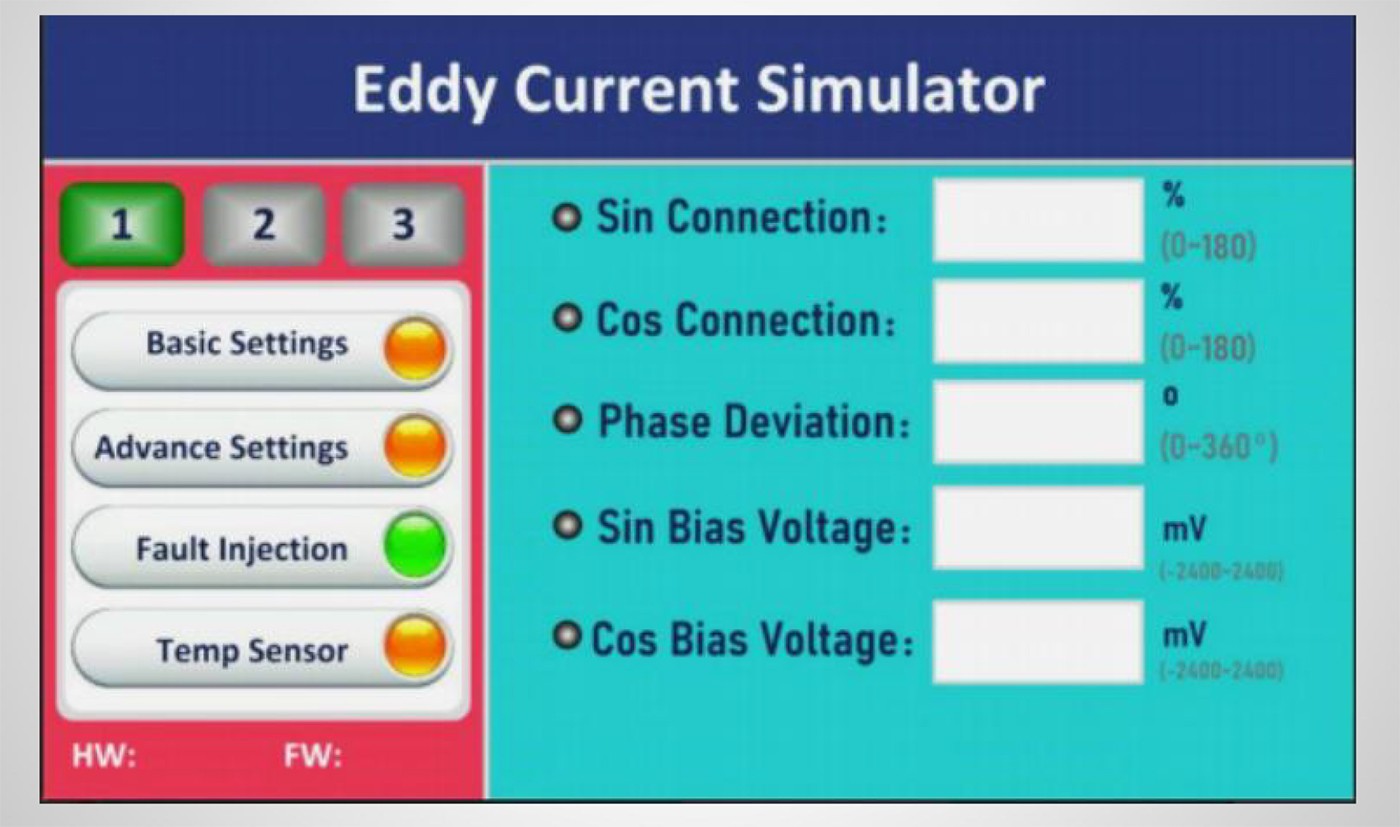

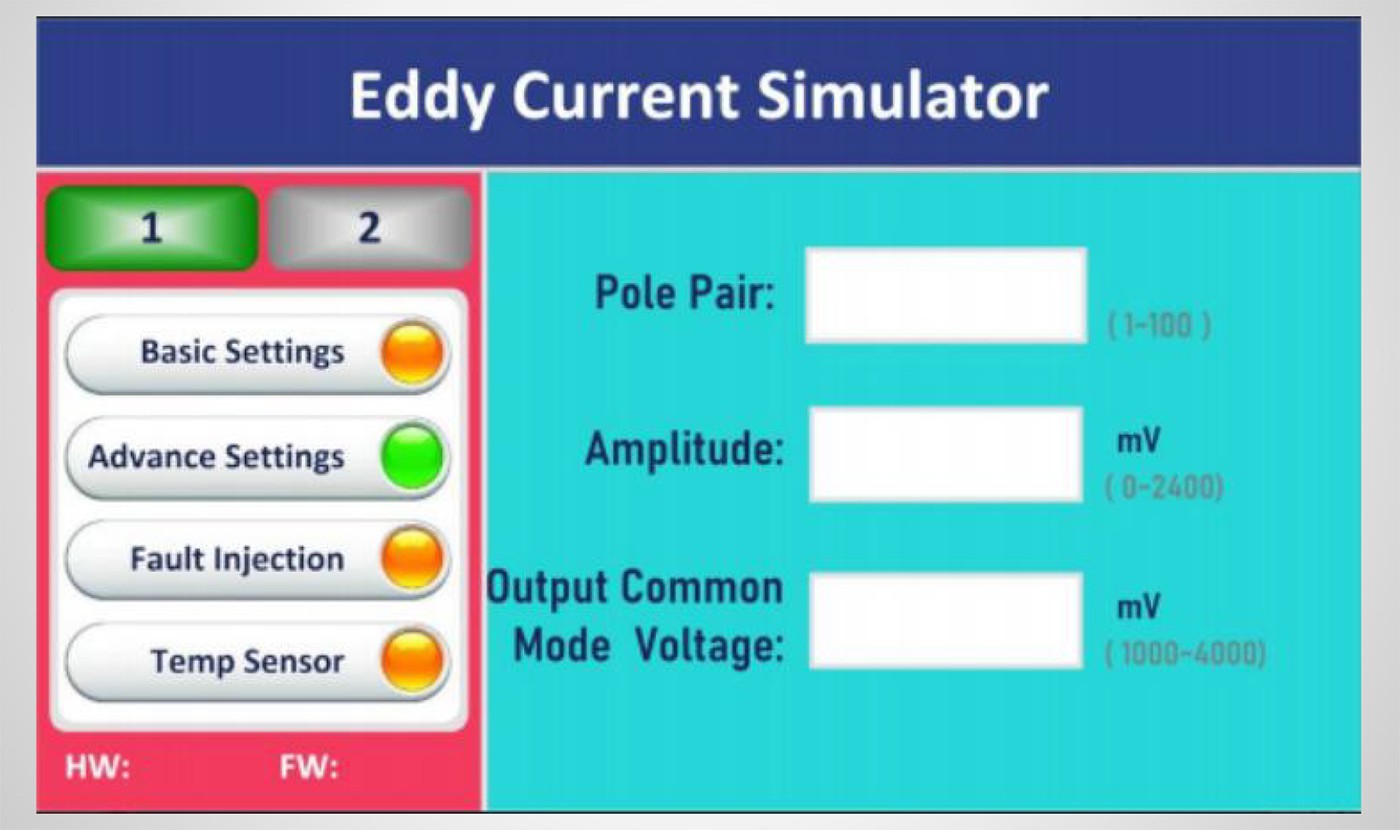

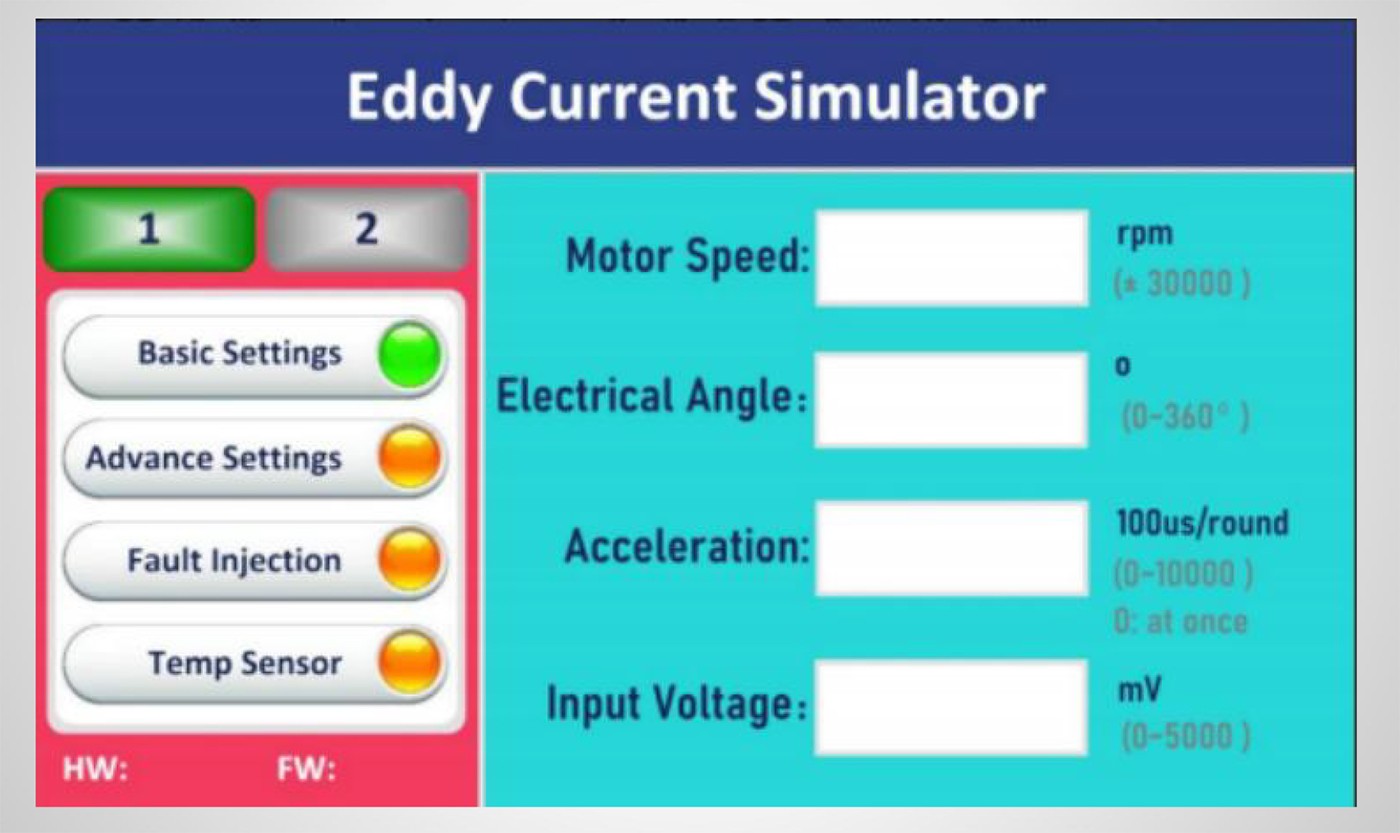

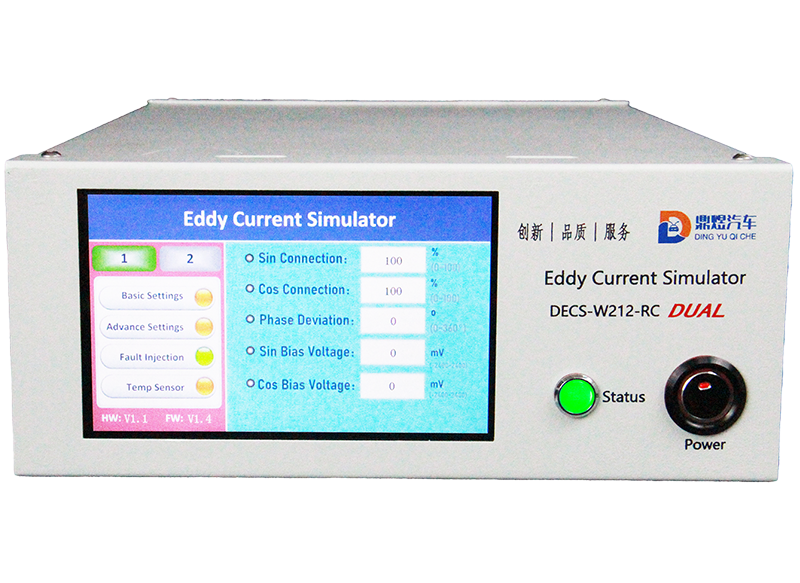

Measurement and Control Software

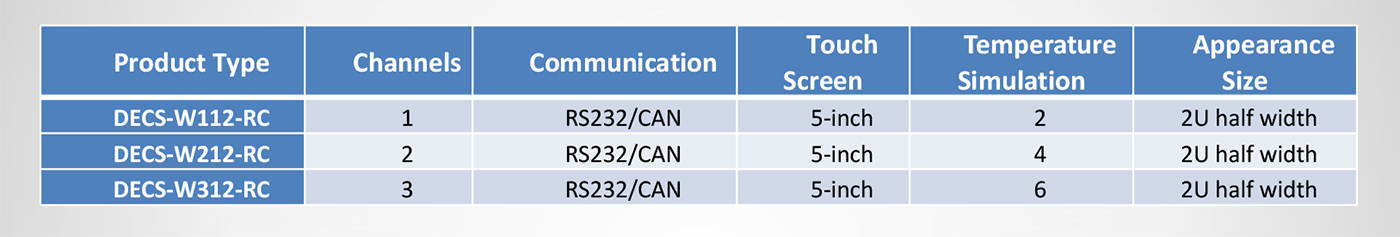

Parameter comparison

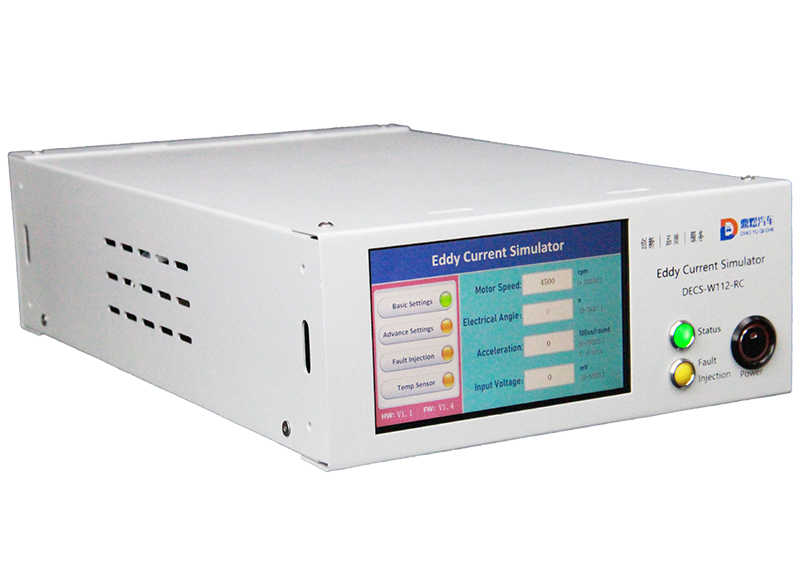

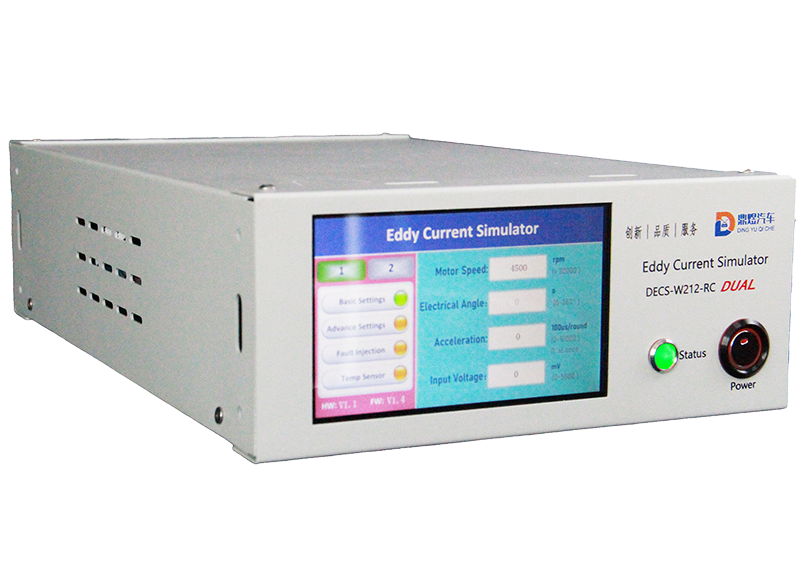

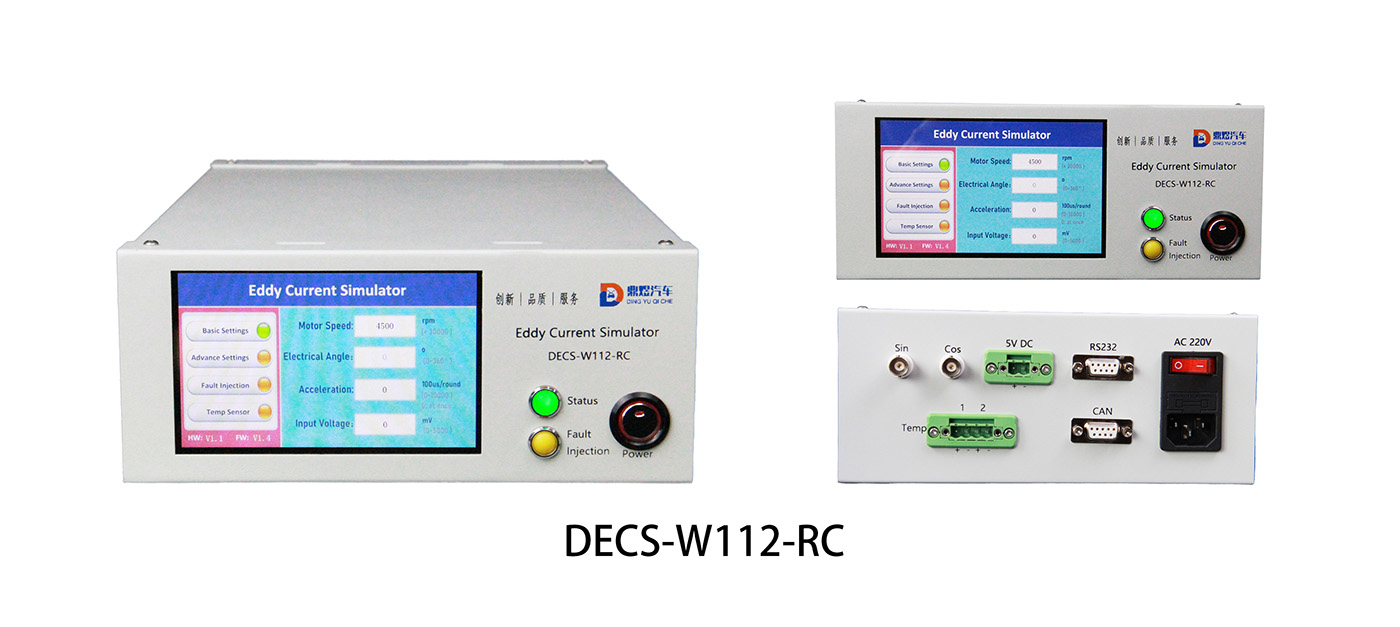

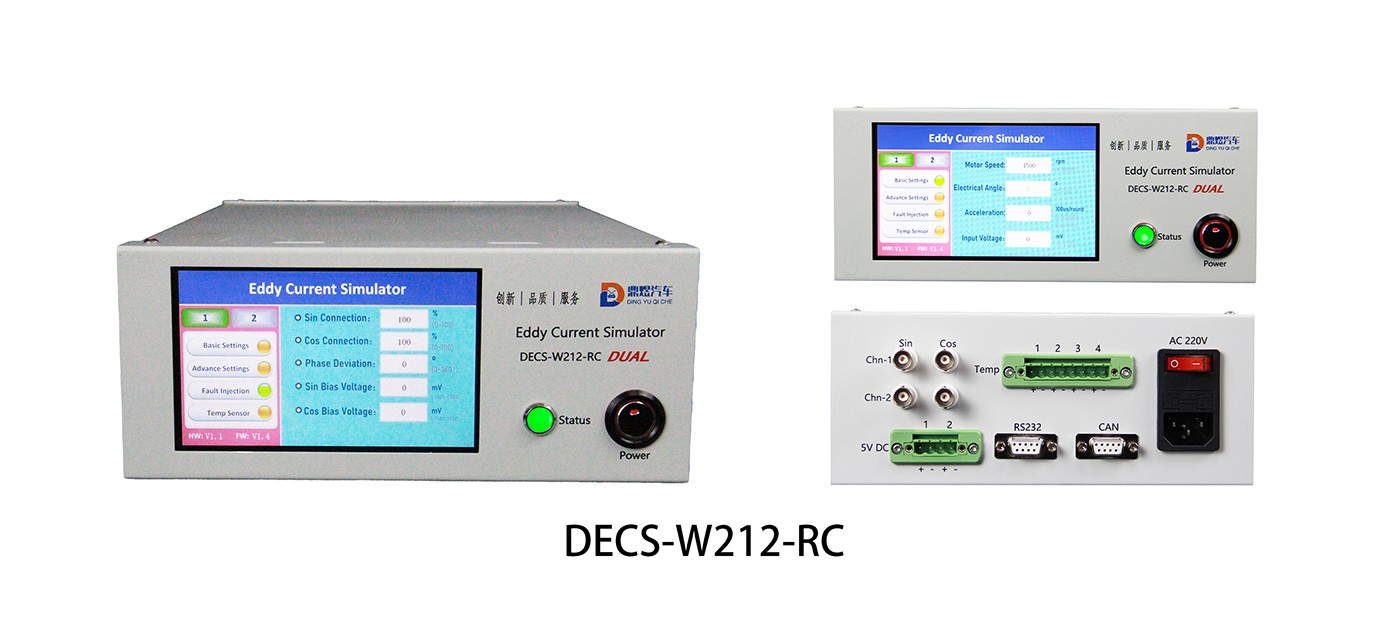

Model | DECS-W112-RC | DECS-W212-RC |
Channel Nnumber | 1 Channel | 2 Channels |
Speed Range | :+/-30000 rpm | :+/-30000 rpm |
Angle Range | 0-360 degrees | 0-360 degrees |
Angle Accuracy | ≤±0.2 degrees | ≤±0.2 degrees |
Display | 5-inch capacitive touch screen | 5-inch capacitive touch screen |
Temperature Sensors Number | 2 sensors | 4 sensors |
Fault Injection Types | Signal attenuation, phase deviation, short circuit | Signal attenuation, phase deviation, short circuit |
Polar Pair Range | 1-100 | 1-100 |
DC Bias Voltage Regulation | Support | Support |
Common Mode Output Voltage Regulation | Support | Support |
Excitation Signal Amplitude | 0~2400mV（Default 1300） | 0~2400mV（default 1300） |
Signal Delay | ≤0.5us | ≤0.5us |
Interface | RS232（Modbus） | RS232（Modbus） |
CAN（500Kbps） | CAN（500Kbps） | |

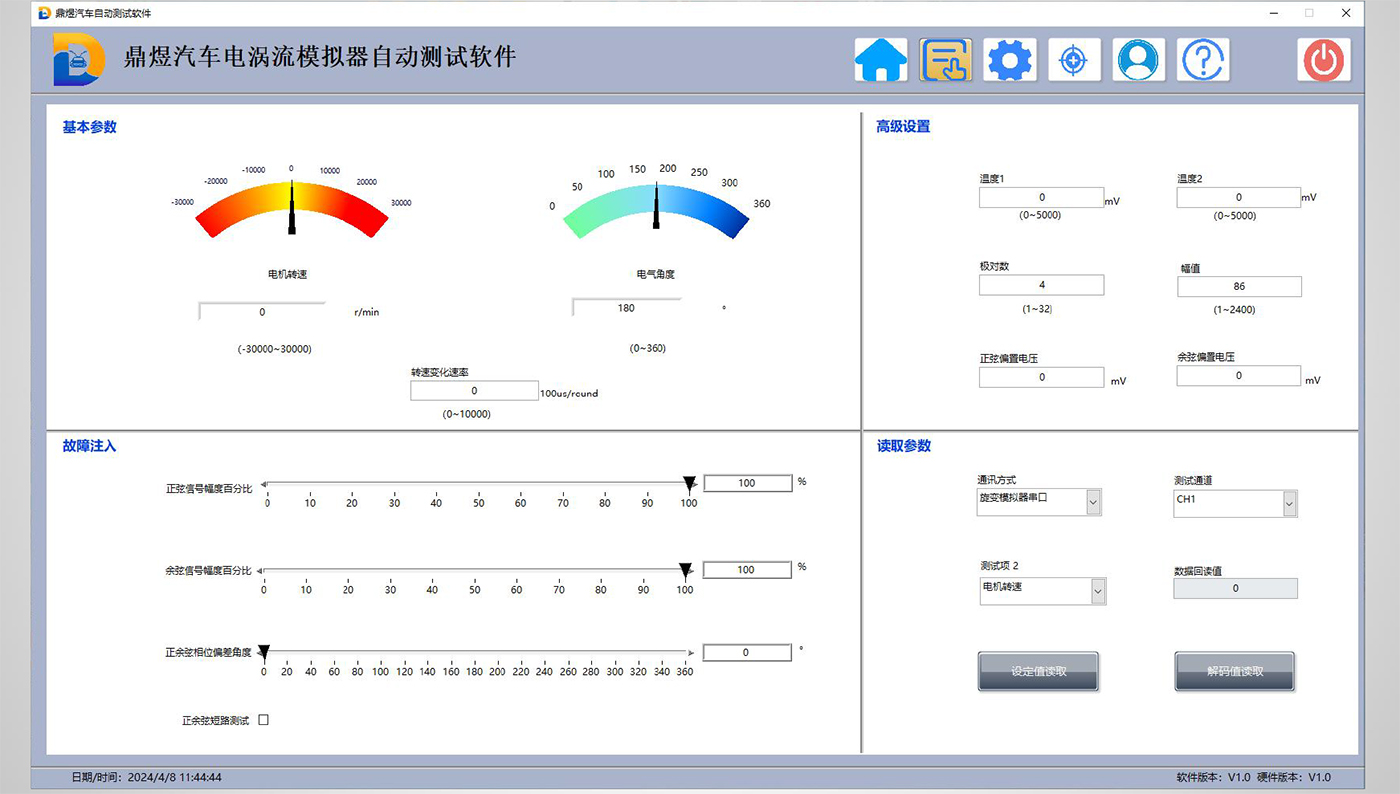

Software | Eddy current simulator test software | Eddy current simulator test software |
SDK basing on Labview and protocol documents | SDK basing on Labview and protocol documents |
Product Model | DECS-W112-RC | DECS-W212-RC | |
Channel Nnumber | 1 | 2 | |
Hardware Specifications | Net Weight | 4kg | 4.1kg |
Gross Weight | 4.5kg | 4.6kg | |
Product Size | 208*340.3*85mm | 208*340.3*85mm | |
Package Size | 45*30*15cm | 45*30*15cm | |

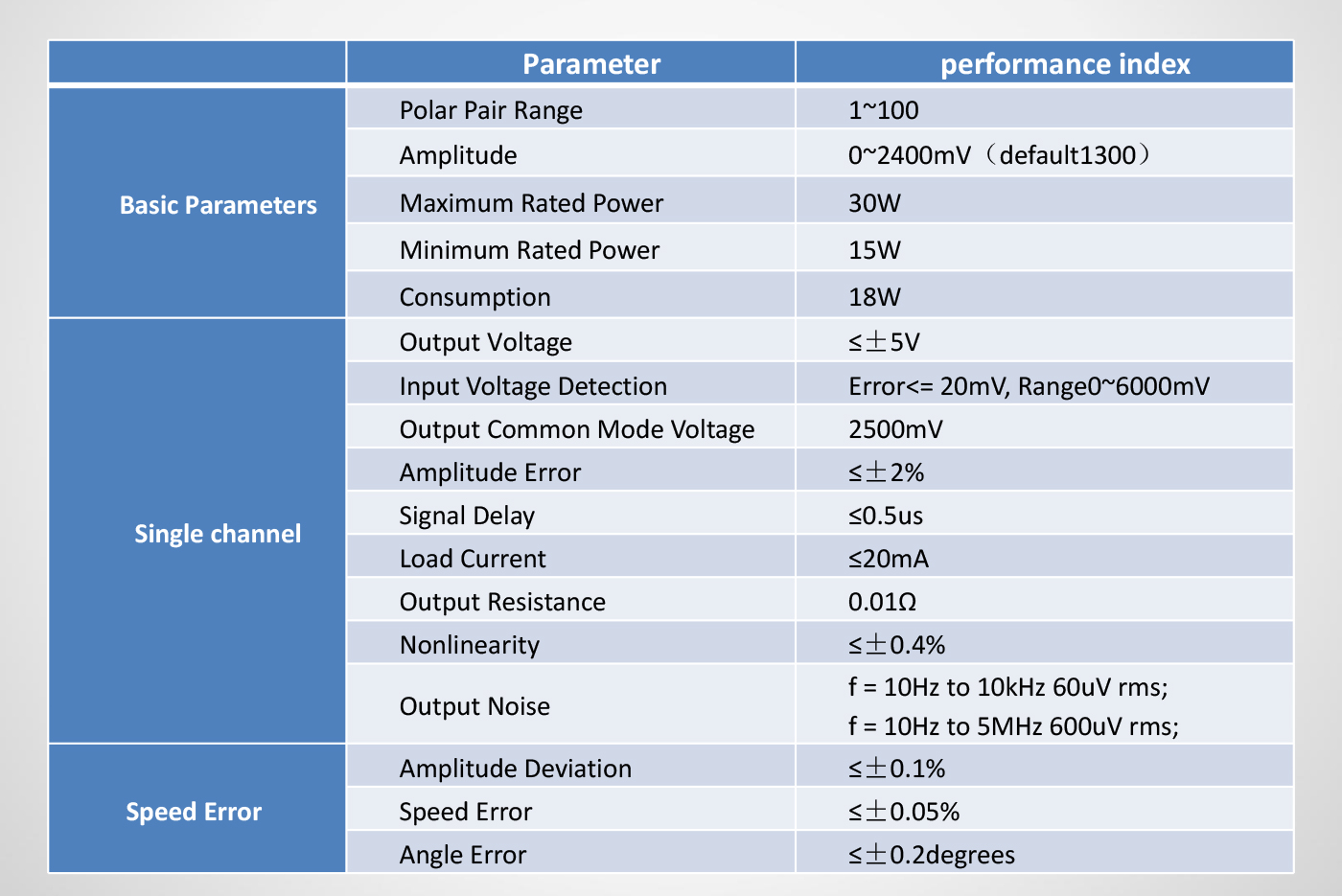

Basic Parameters | Speed Range | -30000~30000 RPM | |
Electrical Angle Range | 0~360o | ||
Polar Pair Range | 1~100 | ||
Excitation Signal Amplitude | 0~2400mV（Default 1300） | ||
Maximum Rated Power | 30W | ||
Minimum Rated Power | 15W | ||
Consumption | 18W | ||
Single Channel | Output Voltage | ≤±5V | |
Output Common Mode Voltage | 2500mV | ||
Amplitude Error | ≤±2% | ||
Load Current | ≤20mA | ||
Output Resistance | 0.01Ω | ||
Nonlinearity | ≤±0.4% | ||
Noise Density | 1µV/√Hz | ||
Broadband Noise | f = 10Hz to 10kHz 60uV rms; | ||
f = 10Hz to 5MHz 600uV rms; | |||
Signal Delay | ≤ 0.5 μs | ||
Between Sine And Cosine Channels | Amplitude Deviation | ≤±0.1% | |
Speed Error | ≤±0.05% | ||
>
