TA-117F duplicator. Copy SATA&PCIe interface
High speed read and write, infinite string connection, multiple interfaces, intelligent management
Provide a variety of copy modes to meet the differentiated needs of customers
The master disk can be made into an image and put on the cloud, and the image can be matched with the customer management system, and the process log can be generated and uploaded for the convenience of the quality department
 |
|  |
 |
|  |

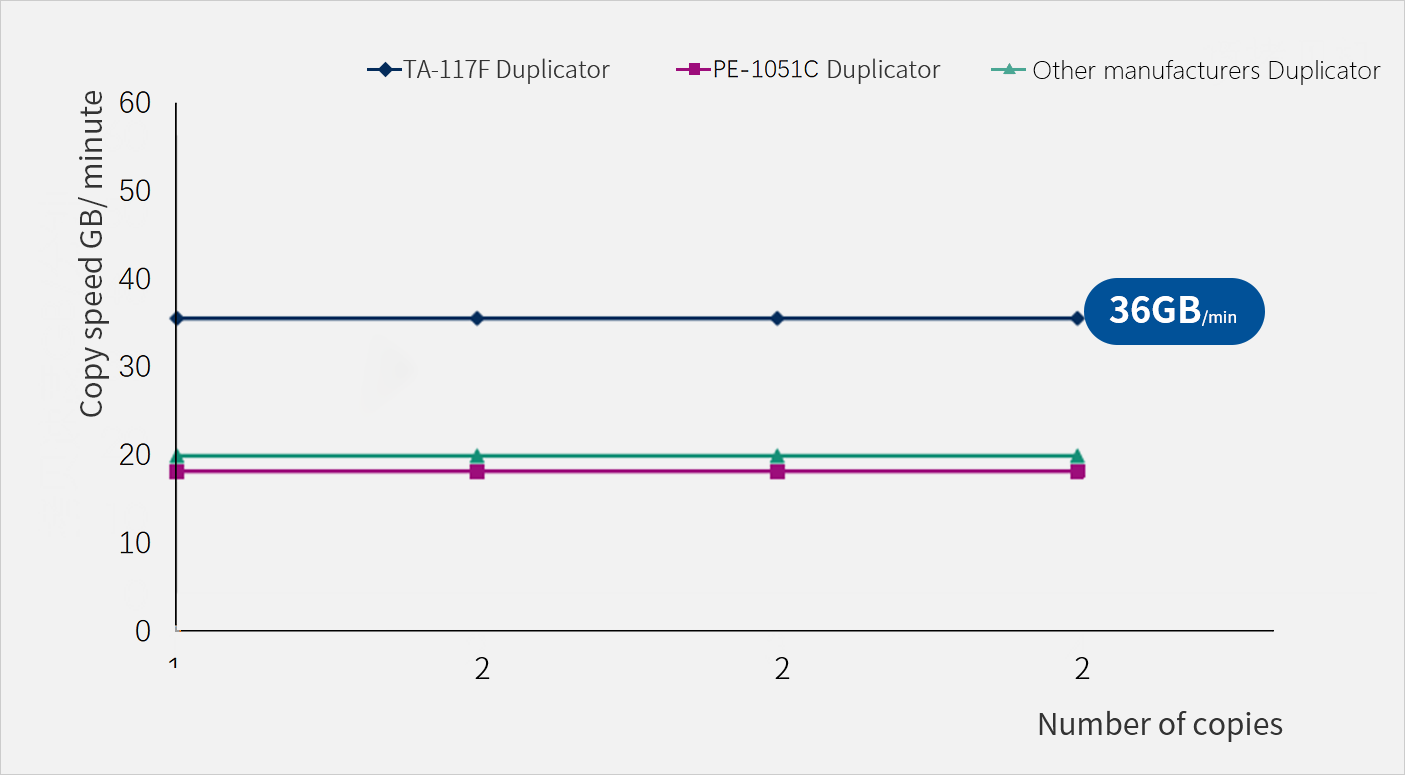

Copy speed up to 36GB/ min per port
Copying is done easily. Each interface is independent and does not affect each other.
Series extension
The copying machine supports multiple sets of serial connection, sharing a mother plate. The production line can be connected freely according to the production capacity, and the serial connection machine is up to 50 sets.
Optional function
In addition to M.2 SSDS that support SATA, the transfer board can be replicated through the mSATA interface (the transfer board is optional).
 |  |

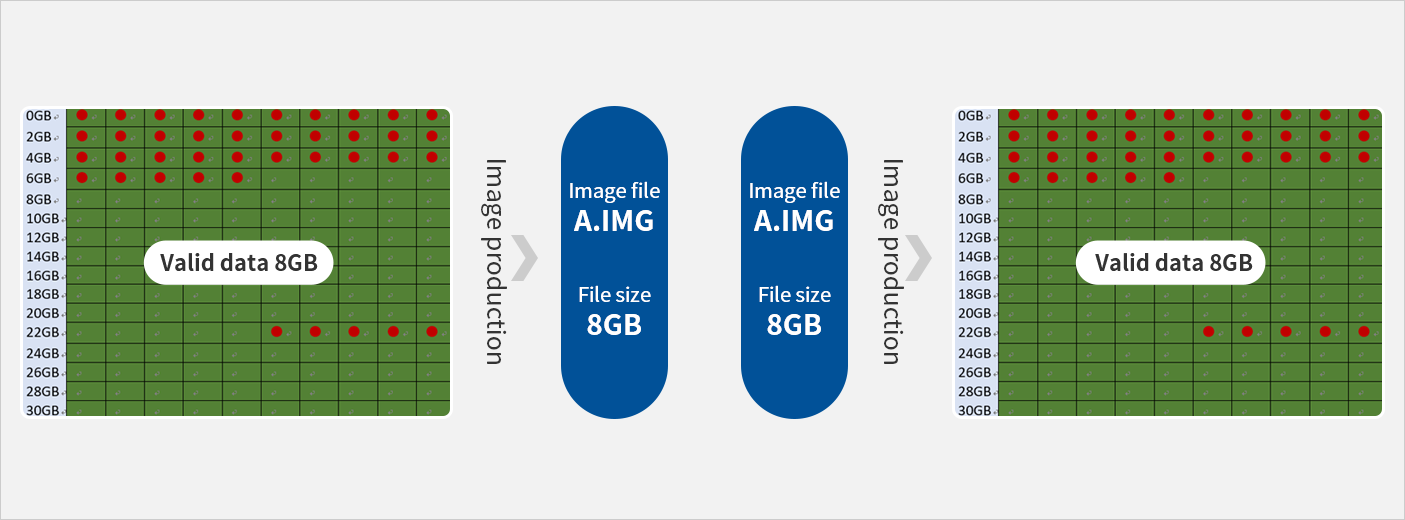

Image file making and copying
To ensure the integrity of data on the master disk, create image files for the master disk data and store them on the server or local computer for unified management.
According to the production line monotonous allocation of different image files, complete data replication.

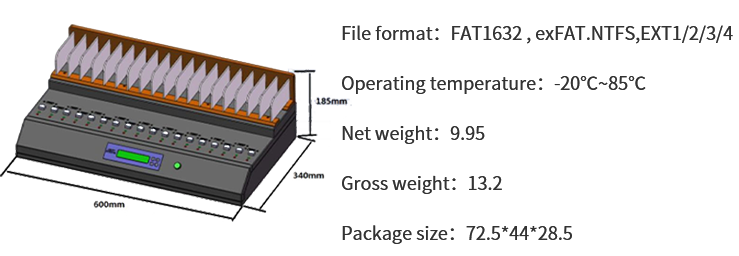

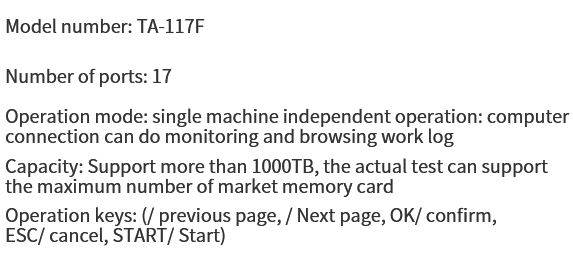

Specification and size
 |  |  |  |
 |  |
|
|
Model number | TA-117 | |
port | Master plate | subdisk |
1SATA slot | 17SATA slot | |
specification | Cache memory | 2GB |
Maximum transmission speed | SATA: 600MB/S | |
Operating mode | The computer is connected to monitor and browse the work log | |
Single machine independent operation | ||
Support language | Chinese & English | |

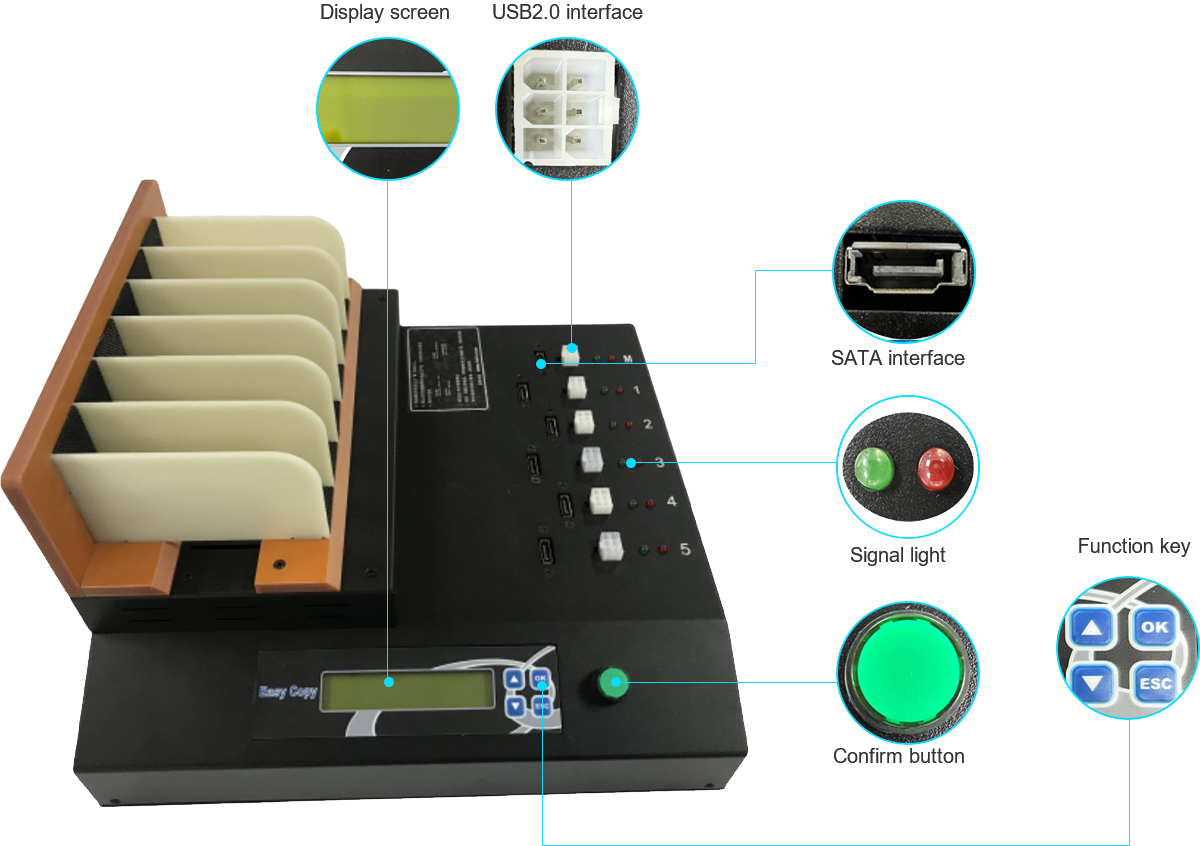

display | Monochrome liquid crystal LCD display | |
LED display status | Port red and green LED display | |
Push button control | ▼, bring about, ECS, OK, START | |
function | Copy function | Quick copy, full copy, 100 percent copy |
Comparison function | Master disk file MD check | |
Compare the parent card and child card Bit to Bit | ||
Erasing function | Quick erase, full erase, DoD erase | |
Formatting function | FAT32 | |
Computer link | Real-time computer monitoring, work record keeping | |
compatibility | Support format | FAT12/16/21/32/64, exFAT, NTFS,HFS,HPFS,EXT1/2/3/4, |
XFS,GPT,LVM,UFS,HPA,DCO | ||
File system | Dos | |
Microsoft WIN8, WIN7 ,Win Vista, | ||
Windows 2000/98/95 | ||
Linux Ubuntu, Fedora, Red Hat Mac OS 10.x | ||
Hardware specification | Input power supply | 180W,110~250V/AC |
volume | 600mm*340mm*185mm | |
weight | 10KG | |
Working environment | Temperature: 0℃~45℃ | |
Humidity: 20%~85%, no condensation | ||
Title | Description |
Version Download |
Q1:What are the differences between the new generation of NV series copiers and the previous generation of NV series copiers? |
1.The new generation of NV series duplicators include three: NV-05SA, NV-10SA and NV-20SA |
Q2:What is the service life of the vertical connector? |
The vertical plug interface is designed by artificial mechanics and can support up to 10,000 times of plug and pull |
Q3:What is the copy speed? |
The copy speed of NV series duplicator can reach 800M/S |
Q4:Can I support large-capacity SSD copy? |
Sure |
Q5:Can you copy IDE HDDs? |
Sure. |
Q6:Can I support HDD copy of U2 interface? |
Sure. |
Q7:The capacity of the master disk is different from that of the child disk. Can I copy it? |
Sure. |
Q8:Is the hard disk made by fast copy completely consistent with the master disk? |
Yes. |
Q9:Why does the copy fail? |
1.First confirm whether the data capacity of the master disk exceeds the total capacity of the sub-disk. If so, make sure that the capacity of the sub-disk must be greater than the capacity of the master disk, at least 1MB. |
Q10:Why is copying slow? |
In addition to being affected by the machine itself, the copy speed also depends on the read and write speed of the hard disk itself. Further troubleshooting is required: |
Q11:How to ensure that the hard disk data is copied successfully? |
In addition to the copy function, the copying machine also has the data comparison function. The system can turn on the comparison function. After the copy is completed, the system will automatically compare the data between the master and the sub-disk to ensure that the data copy is not lost or damaged |
Q12: How many HDD Duplicator can be supported at most for serial simultaneous copying? |
To ensure the copy speed and efficiency of the copying machine, it is recommended to connect up to 50 sets (1000 ports) in series |
Q13: What is the difference between fast copy and full-area copy? |
Fast copy: only copy the format data area supported by the system, avoiding blank areas, so it can greatly reduce the copy time and improve the copy efficiency. When selecting fast copy, the copy opportunity will analyze the data first. If it is found that the actual target card cannot hold all the parent data, the copy opportunity will directly turn on the red light< Br/>Full copy: regardless of any format, file size, the copying machine does not analyze, but directly copies the track to track, which takes a long time to copy. |
Q14: Why does the red light come on immediately after I insert the card and press the copy button? |
Please check whether your parent source data is larger than the child source data, or the parent source data location has exceeded the child source space< Br/>If you copy NTFS format, please confirm that the capacity of your parent source Flash must be smaller than that of the child source< Br/>Please put your parent source on your PC to see if it can be read normally< Br/>If you are copying the SD card, please confirm whether the SD card is locked. |
>
