Pain Point Resolution
Versatile, high-precision, and efficient, it can withstand long-duration load testing: a single product can support power supply and active/sleep current detection for 14 switch channels, achieving a test accuracy of 5 microamps; it also supports input signal detection for a two-channel low-speed analog module, enabling long-duration testing of power supply products under load; it supports KL15 and KL30 switch control and allows for the on/off control of each channel switch through a host computer.

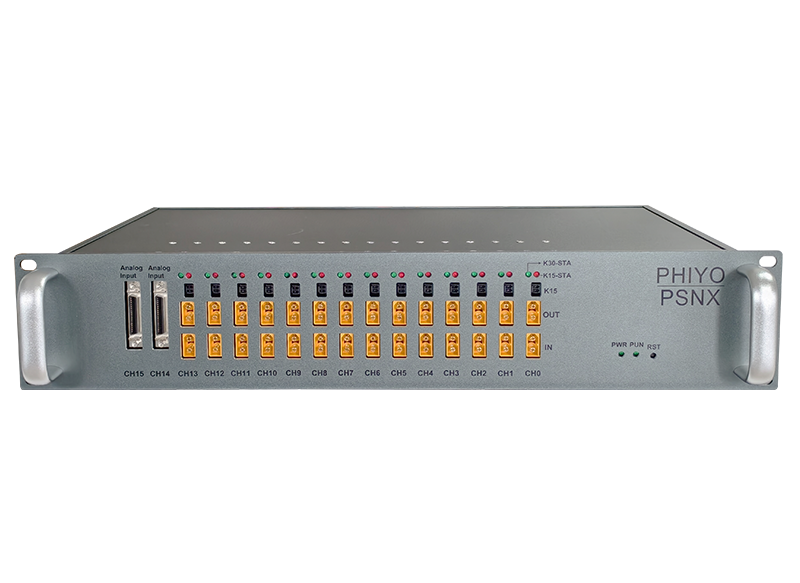

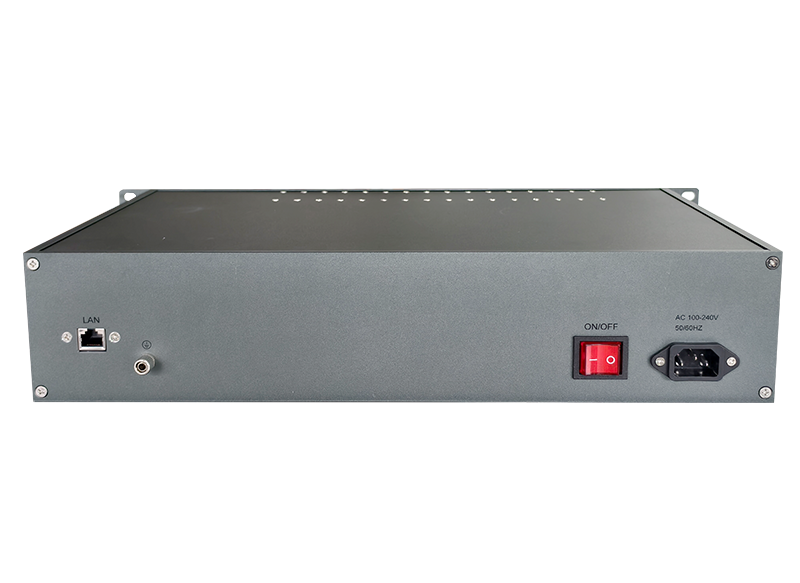

Product Introduction
· Supports up to 16 channel modules · A single acquisition switch channel module can independently control the on/off state of the load (vehicle-mounted system K30 switch, with an accompanying indicator light) · A single acquisition switch channel module can perform independent voltage and current acquisition · Independent ignition signal control for a single acquisition switch channel module (on-board system K15 switch, with indicator light) · A single analog acquisition channel module interface supports the signal acquisition of 8 low-speed analog input channels · Power supply interface: AC 220V · Control interface: ETH · Can provide commonly used API interfaces such as C++, C#, Python, LabVIEW, etc. |

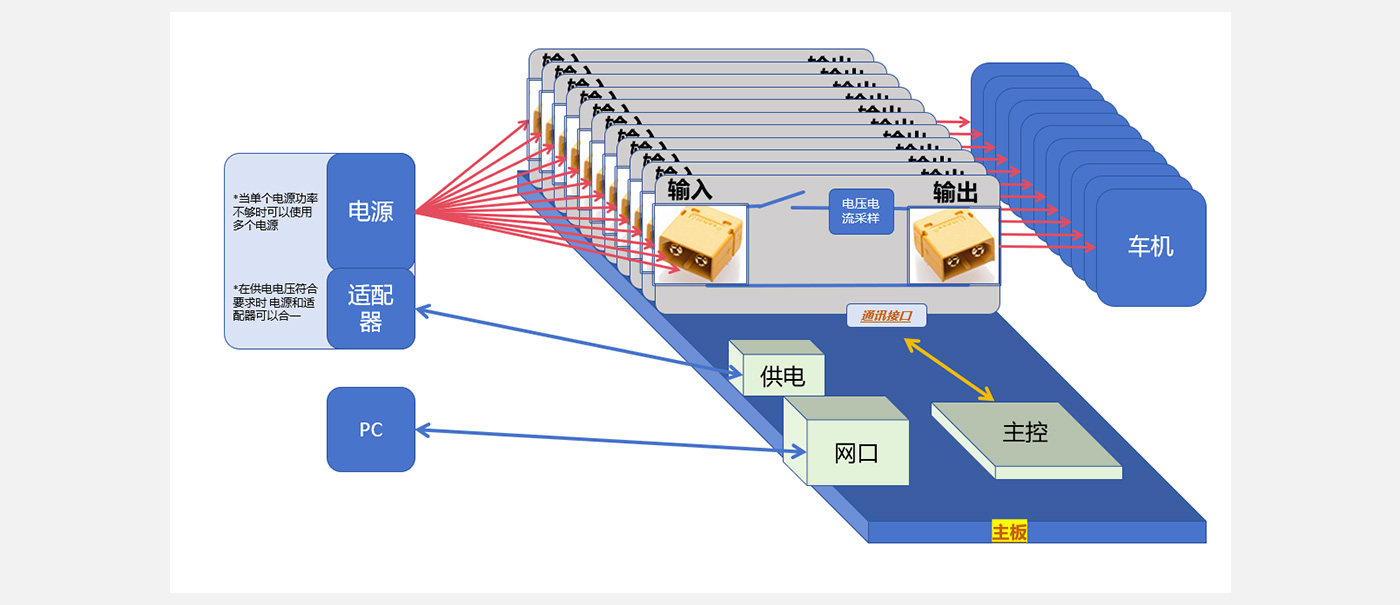

Product Principle
Communication interface: Gigabit Ethernet TCP/IP
Voltage and current acquisition switch channel module: 14 sets
Analog acquisition channel module: 2 sets
Power supply: AC 20V
Size: Length 483 × Width 300 × Height 89mm
Weight: 5kg
>
