Pain Point Resolution
Substitute for physical screens without occupying space: A single product can replace multi-channel screen displays, replacing multiple physical screens with a small size.
Model change and transformation: Multi-model compatibility can be achieved through switching configuration files on the host computer/replacing the deserializer board, allowing a single product to correspond to multiple variants.
Touch simulation display: It can simulate touch signals and feed them back to the car's infotainment system to enable touch operation, thus achieving screen touch function detection.

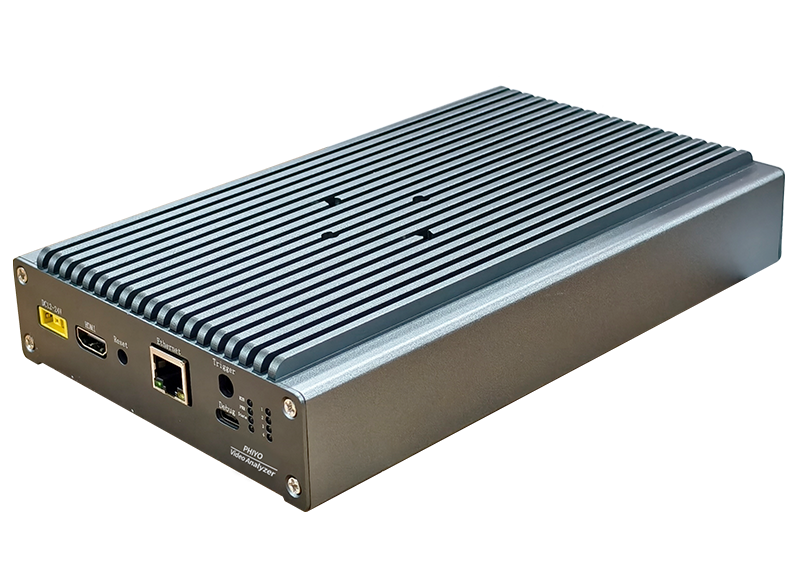

Product Introduction
· This product supports four screen replacements simultaneously · Supports common in-vehicle video signal reception (GMSL/FPD_link/HSMT, etc.) · Supports both single-link and dual-link input modes · Input timing automatic detection and parsing · Supports real-time CRC detection for static video streams · Supports single HDMI loop-out · Modular design of deserialization unit · It can be adapted to different client machine variants by issuing configuration files through the PC terminal or by adding/replacing the deserializer module · Provides commonly used API interfaces such as C++, C#, Python, etc |

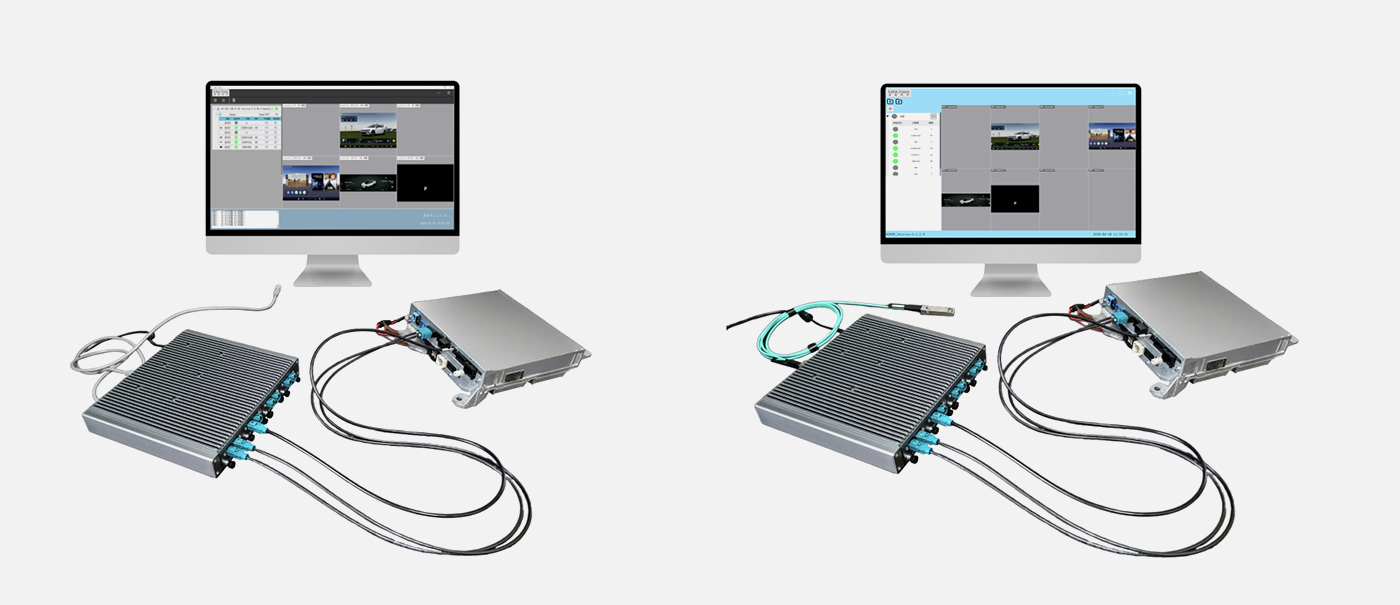

Product Principle
Interface type: Coax (Rosenberger Mini Fakra)、STP (Rosenberger H-MTD)
Supported protocols: GMSL / FPD_link / HSMT (Support MIPI signal access version)
Communication interface: Gigabit Ethernet TCP/IP (collecting single frame images of video)
I2C support: 0-1Mbps
Power supply: DC 20V/2A
Size: Length 135 × Width 217.5 × Height 40mm
Weight: 1kg

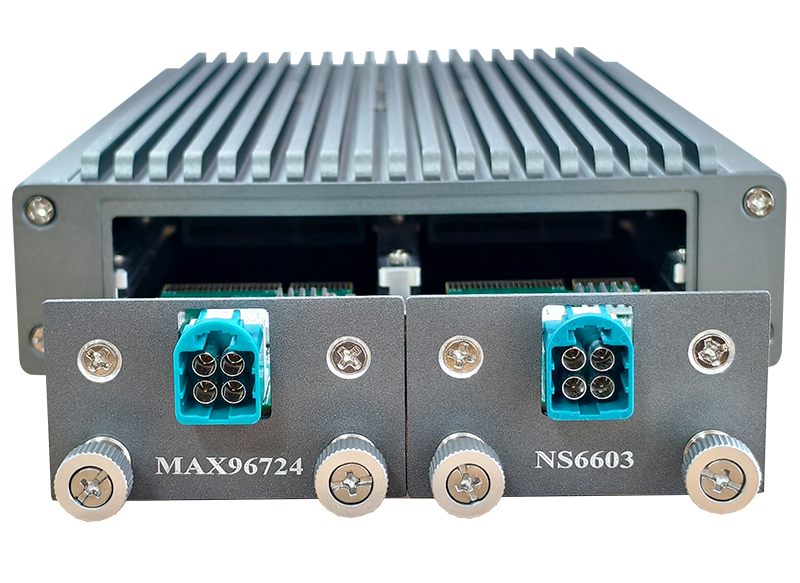

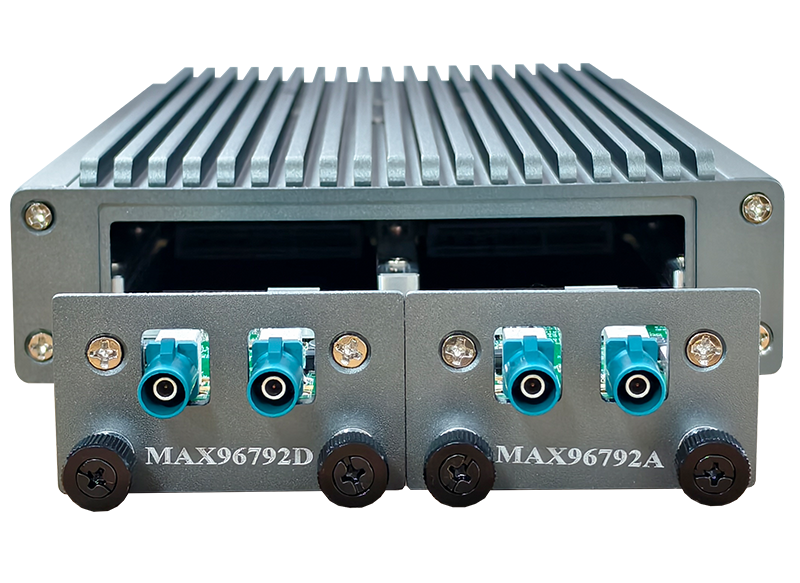

Adaptation deserializer:
GMSL | FPD_link | HSMT | AHDL |
Maxim | Ti | Ruifa Tech | Kangzhi |
MAX96792 | DS90UB9702 | NS6603 | AIM9612 |
MAX9296 | |||
MAX96716 | |||
MAX96712 |
>
