Pain Point Resolution
The core of the integrated solution for on-board USB fast charging and screen mirroring is to achieve fast charging power supply, high-speed data/audio and video transmission, and mobile phone interconnection and screen mirroring simultaneously through a single port. This solution addresses the pain points encountered during factory testing of USB modules, where multiple stations are required for testing, resulting in either charging without screen mirroring or slow charging with screen mirroring.

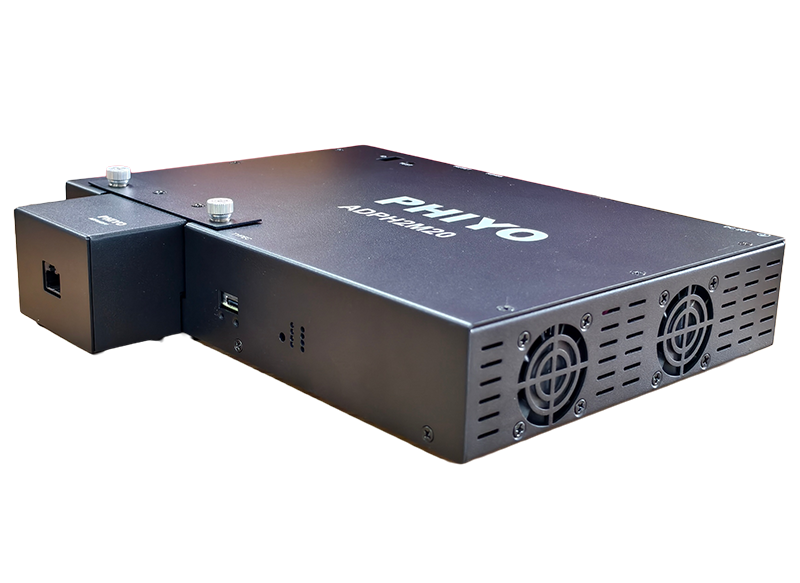

Product Introduction
· Three-in-one: charging, screen mirroring, and data transfer · Supports testing of mainstream fast charging protocols such as USB PD, QC, SCP, AFC, UFCS, as well as proprietary protocols. Single-port power commonly ranges from 18W to 65W, with the potential to reach up to 240W. It allows for seamless switching between screen mirroring and fast charging. · Supports bidirectional DP IN and DP OUT, with a maximum support of 8K60Hz. · Built-in load module, no need for additional load. · Integrated video signal generator and video signal parsing function. · Supports RS485 communication and Ethernet port communication. · Supports USB2.0 and USB3.0 signal generation and analysis · Non-standard Type-C interface, modular design, easy to replace. · DC-12V power supply. |

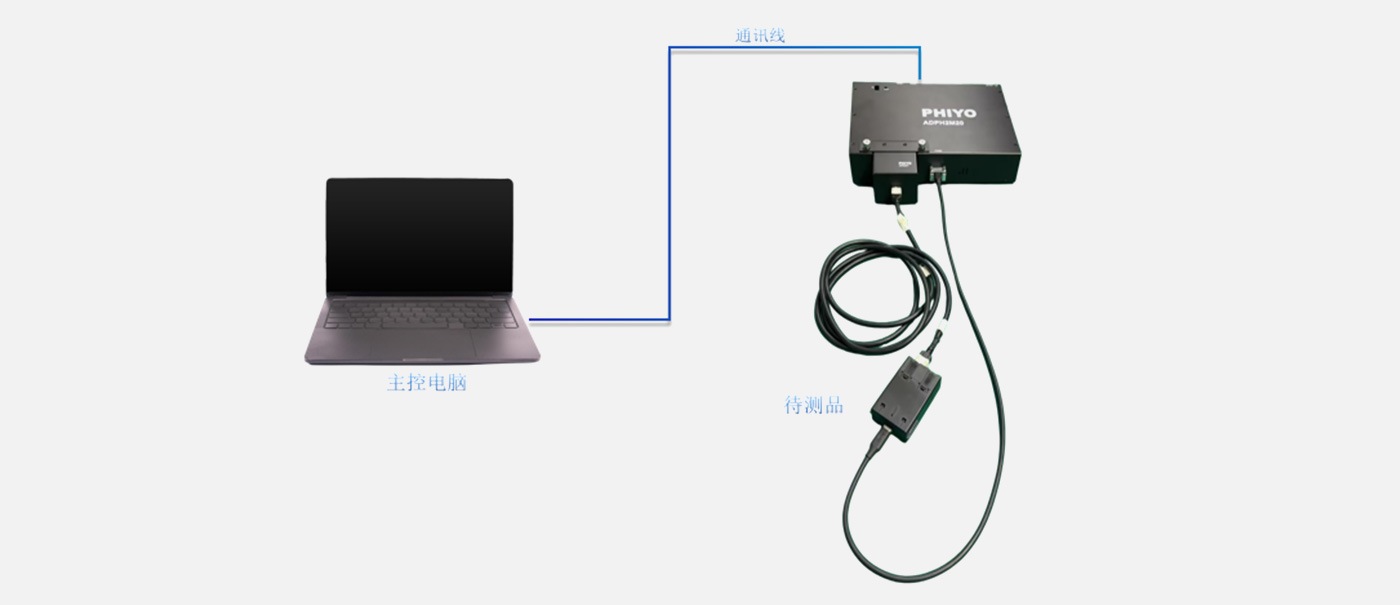

Product Principle

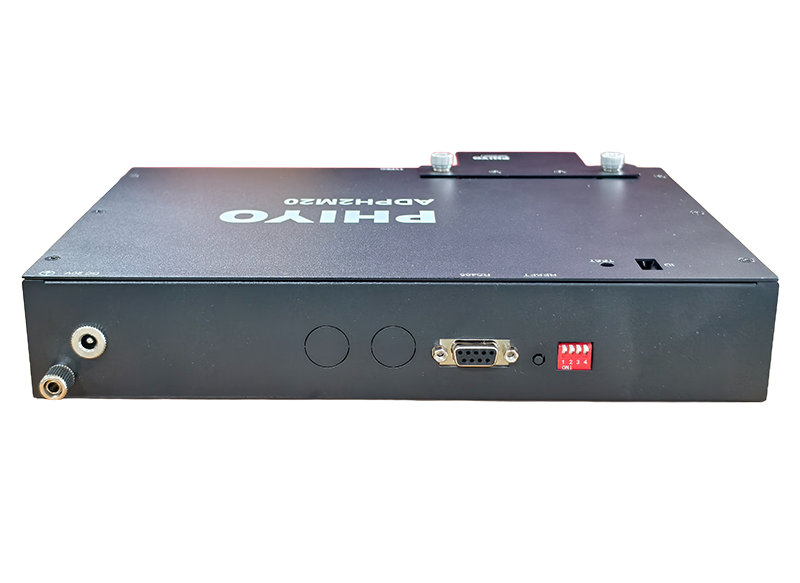

Communication interface: RS485 communication, Ethernet port communication
Power supply: DC-12V
Size: Length 260 x Width 180 x Height 48mm
Weight: 2.19kg
>
