Pain Point Resolution
One device can handle all types of in-vehicle camera simulations: it supports video signal injection for multiple protocols commonly used in the market, such as GMSL, FPD_link, and HSMT.
Comprehensive and flexible customization solutions: It can support up to eight-channel camera signal output simultaneously, enabling a single product to replace the signal injection of eight types of on-board video cameras.

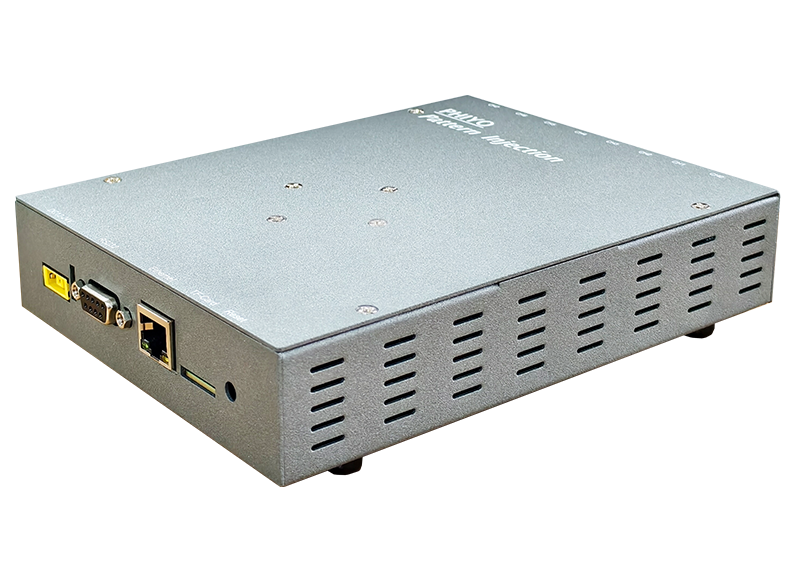

Product Introduction
· Supports simultaneous four-channel/eight-channel GMSL/FPD_link/HSMT output capabilities · Supports GMSL/FPD_link/HSMT, etc · Single channel supports a maximum output resolution of 3840x2160@30Hz RGB · Supports coaxial interface · Supports multiple built-in patterns · Support loading test patterns from an SD card · Control interface: ETH, UART · Provides commonly used API interfaces such as C++, C#, Python, etc · Supports IIC bypass function · Supports external power supply (power supply range: 12V-20V, load capacity: maximum current 5A) · The device configuration file is loaded into the test box through the Ethernet port, facilitating device migration and use |
Product Principle

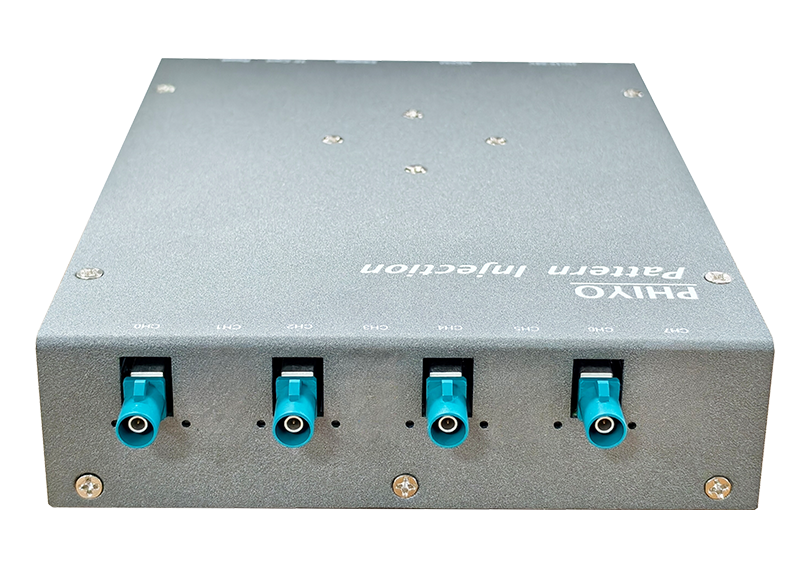

Interface type: Coax (Rosenberger Mini Fakra)
Supported protocols: GMSL
Communication interface: Gigabit Ethernet TCP/IP
Number of interfaces: 4
I2C Supported：0-1Mbps
Power supply: DC 20V/5A
Size: Length 136 × Width 179 × Height 36mm
Weight: 0.6kg
Adaptive serializer:
GMSL |
MAX9295 |
MAX96717 |
MAX96793 |
>
