Pain Point Resolution
Prevent data conflicts and ensure signal equipment is always in good condition: Multi-channel design, orderly signal source transmission lines, anti-interference, and reliability of signal transmission for radar, cameras, and other equipment.
Smooth switching of multi-rate signals: Replacing the traditional slow relay solution, signal switching and transmission are more efficient and stable, resulting in clearer images.
High integration and compact size are fully addressed: traditional signal switching solutions require separate relays for each channel, while the small-sized design directly compresses redundant space, allowing it to be easily placed in the cockpit.

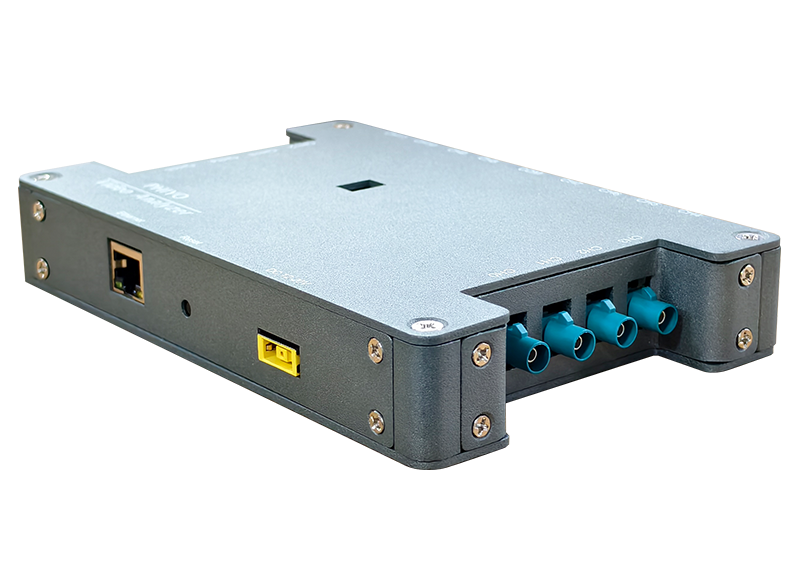

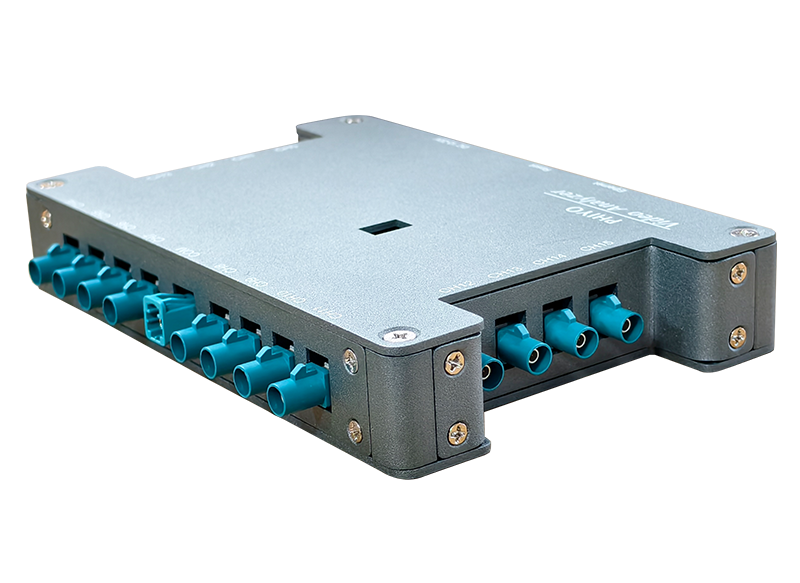

Product Introduction

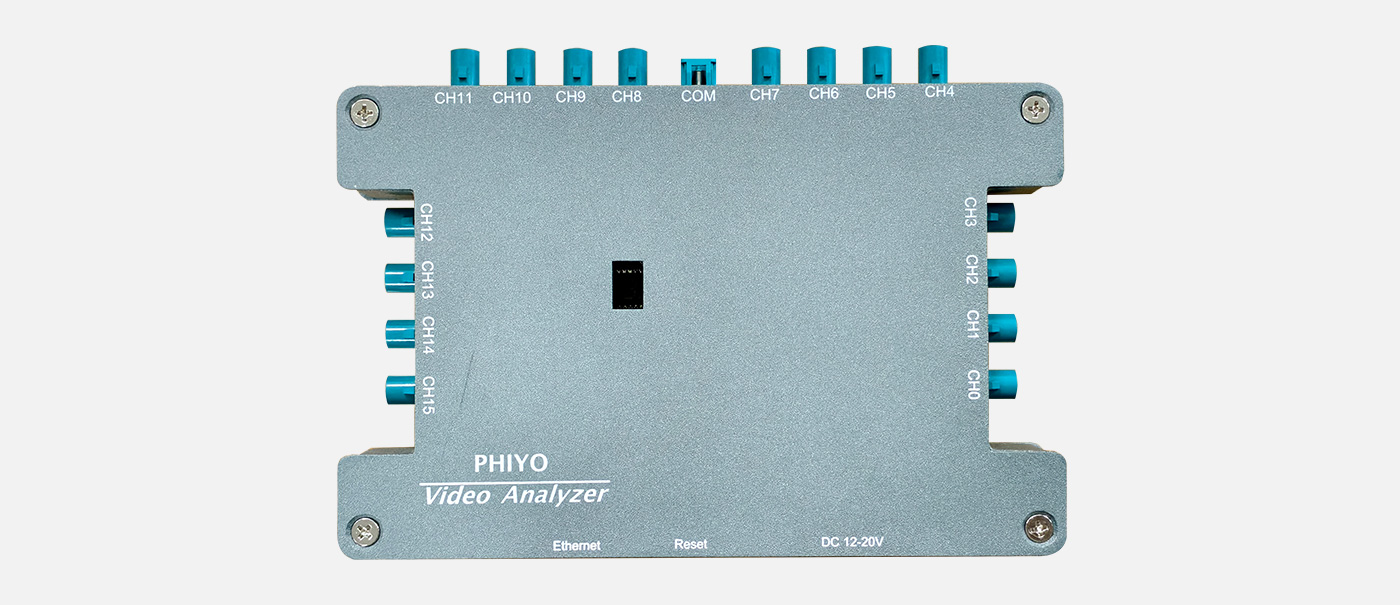

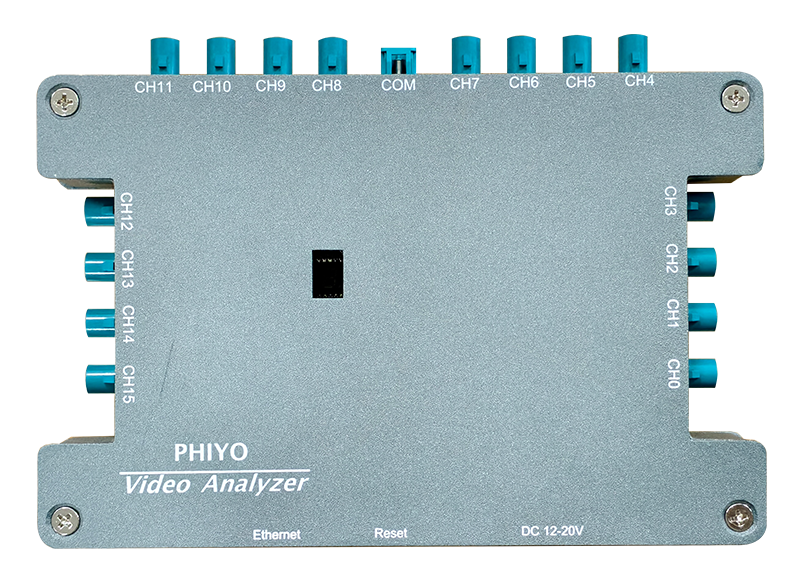

· Supports signal switching capability for up to 16 channels · Supports stable transmission of high-speed signals meeting the rate requirements of commonly used GMSL3/FPD_lINK_IV in the automotive market · Provide two types of hardware connector options: coaxial cable and twisted-pair cable |
Product Principle
Interface type: Coax (Rosenberger Mini Fakra)、STP (Rosenberger H-MTD)
Supported protocols: GMSL3/FPD_lINK_IV
Communication interface: Gigabit Ethernet TCP/IP
Input channel: 1 channel
Output channels: 16 channels
Power Supply: DC 20V/5A
Size: Length 111.5 × Width 96 × Height 35mm
Weight: 0.4kg
>
