Pain Point Resolution
Supports multiple protocol injections with compatibility for various solutions: Compatible with solutions from manufacturers such as TI, MAXIM, and Ruifake, allowing image injection for multiple screen variants on a single machine, making production switching simpler and eliminating the need to replace components.
Replace multiple counterparts with a more streamlined solution at a more affordable cost: The configuration files can be switched through the host computer to adapt to multiple screen types for lighting.
Support Ethernet port to IIC bypass function: Various functions can be achieved through information exchange between the host computer and the screen terminal via Ethernet port IIC bypass.
Product Introduction
· Supports multiple protocols such as GMSL, FPD_link, and HSMT · Supports multiple built-in patterns · Supports custom test patterns for convenient test configuration · Support loading test patterns from SD card · Control interface: ETH, UART · Provides commonly used API interfaces such as C++, C#, Python, etc · Support IIC byapss function · Supports PoC external power supply (External power supply range: 12V-20V; Load capacity: Maximum current 5A) · Supports coax/stp link mode switching, allowing one device to change between two output modes via commands · The device configuration file is loaded into the test box through the host computer's network port, facilitating device migration and use |
Product Principle

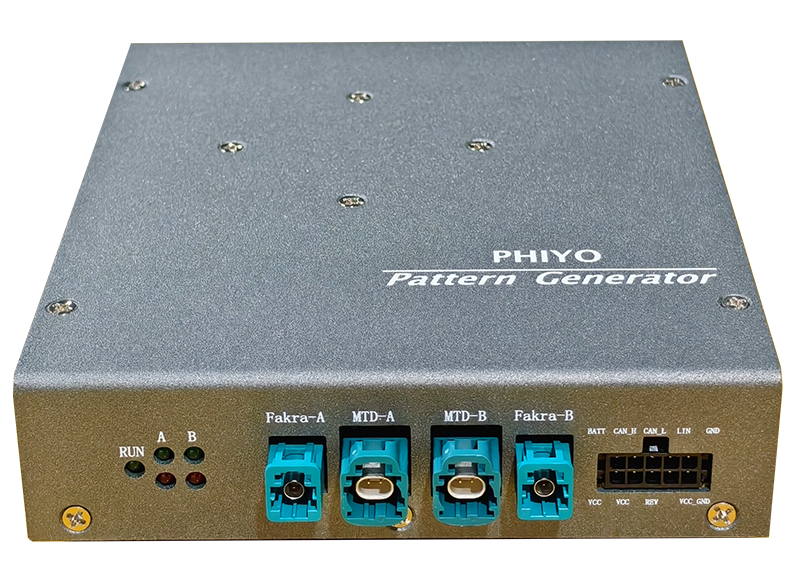

Interface type: Coax (Rosenberger Mini Fakra)、STP (Rosenberger H-MTD)
Supported protocols: GMSL
Communication interface: Gigabit Ethernet TCP/IP
Output channels: 2 channels
DSC: Supported
I2C Supported：0-1Mbps
Power supply: DC 20V/5A
Size: Length 127 × Width 150 × Height 35mm
Weight: 0.5kg
Adaptive serializer:
GMSL |
MAX96705A |
MAX96853A |
>
