8K&60Hz SHV signal generator
Uhd video signal generator automatic and manual operation mode to adapt to a variety of video interfaces in production lines
 |
|
|  |
Asynchronous copy CTO/BTO switchover
Plug and copy without waiting
Each interface is equipped with a mapped storage disk, and each interface works independently to realize asynchronous copy
 |  |
Easy to switch between manual and automatic modes
Automated testing Fully automated testing can be achieved by following the pallet streamline
Manual testing Video interface functionality can be tested at a fixed station on the production line
 |  |

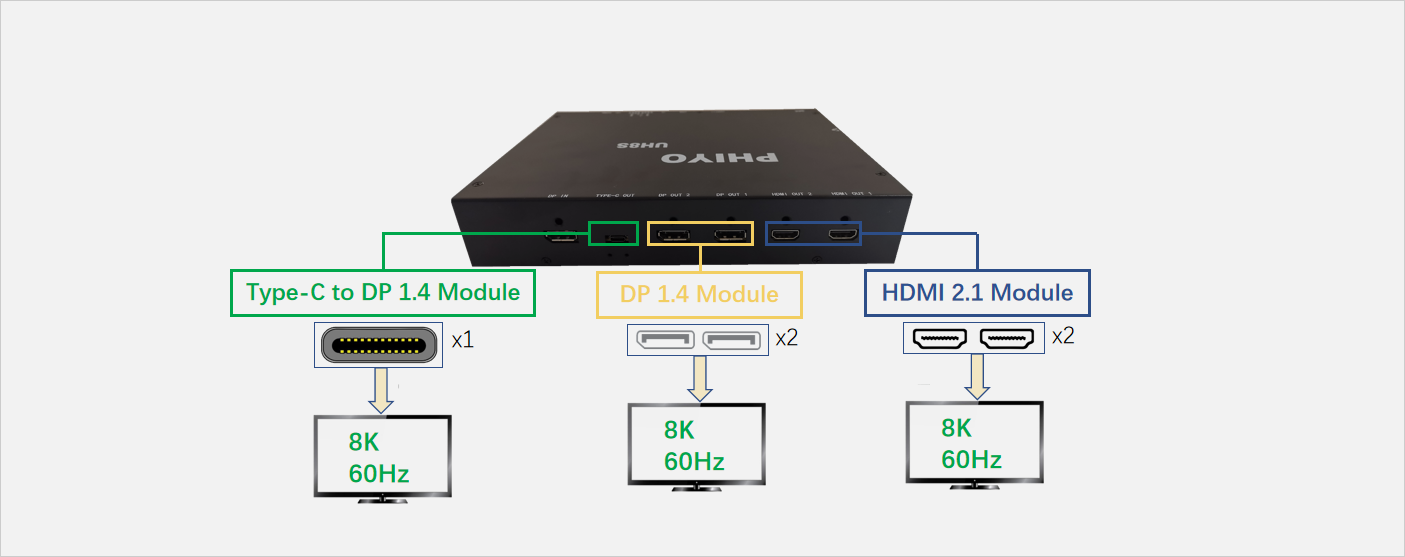

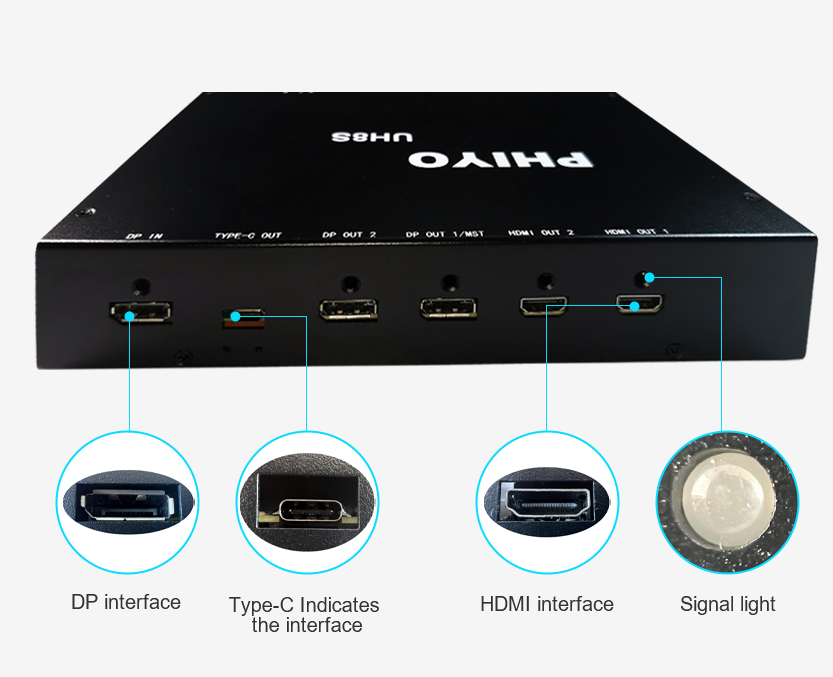

Equipped with three HD video ports to meet different requirements
Test requirements of the machine type

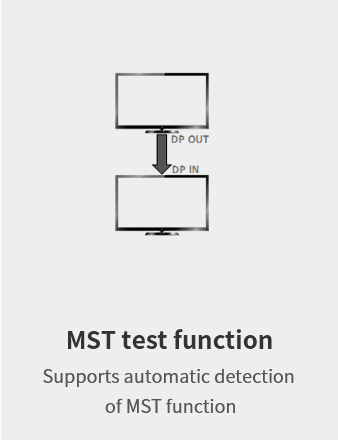

MST (Multi-Stream Transport) Test function

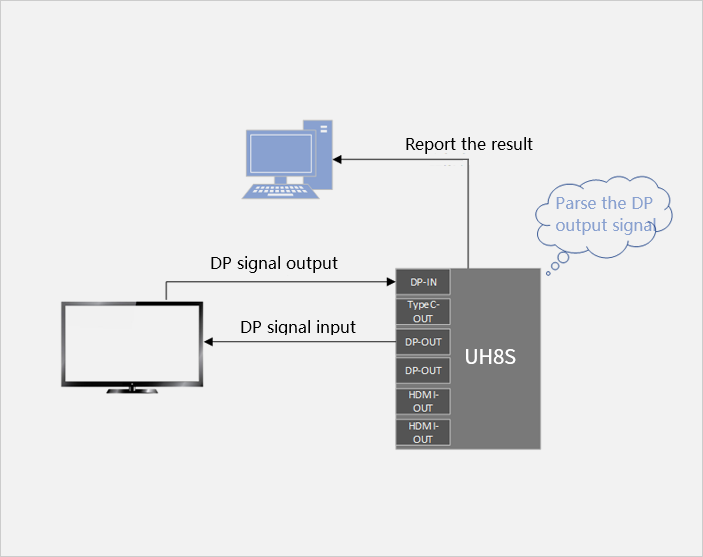

Automatic detection is realized through DP-IN
 |  |
 |  |
 | |

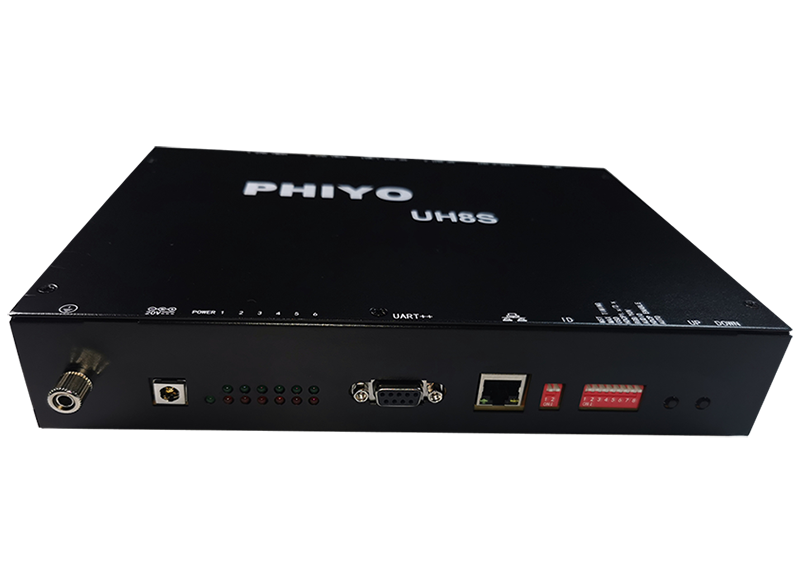

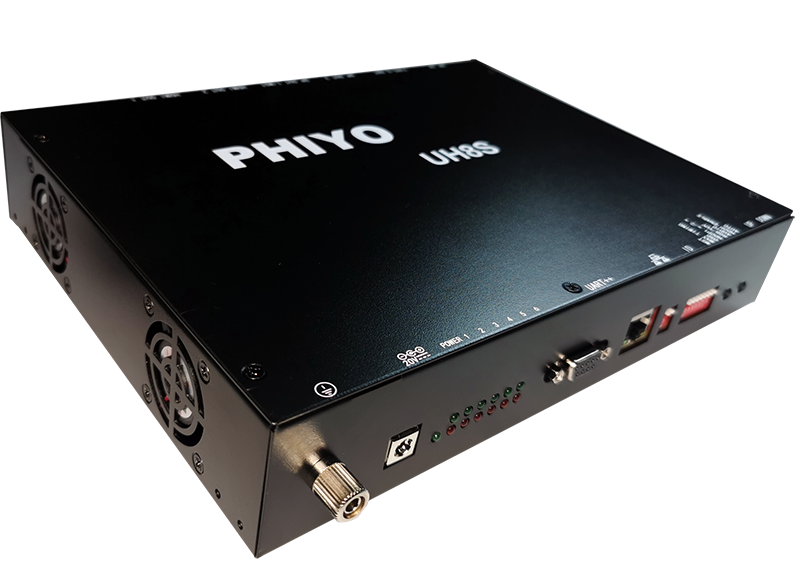

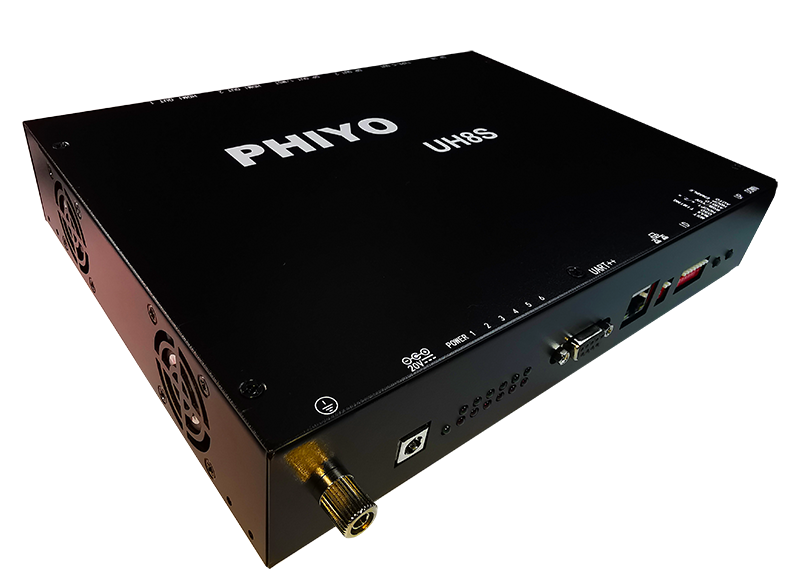

Product name: UH8S | Brand: PHIYO (PHIYO) |
Power consumption: 12W | Input voltage: 12-24V |
Output resolution: 8K@60Hz, 4K@240Hz (YUV420 output format), 8K@30Hz, 4K@120Hz (RGB888 output format) | Output format: RGB/YUV |
Color depth: 24Bit | Audio: 500Hz for the left channel and 1000Hz for the right channel |
HDMI: HDCP1.x&HDCP2.x | DP: HDCP1.x&HDCP2.x |
Title | Description |
Version Download |
Q1: How many interface outputs are supported? |
Supports output through Type-C, HDMI, and DP physical ports. |
Q2: Are interfaces and the number of interfaces fixed? Can you export it independently? |
A total of 5 output interfaces, support independent output; Each interface corresponds to an output board, which can be configured according to the needs of use. |
Q3: We will have a lot of special images during testing. Can you support them? |
Device built-in 32 screen, can meet most of the test, in addition to the native built-in storage, support arbitrary add target screen. |
Q4: Do you support 8K? |
Support multiple groups of resolution refresh rate, the highest support 8K@60Hz, 4K@240Hz (YUV420 output format), 8K@30Hz, 4K@120Hz (RGB888 output format). |
Q5: We are setting up the automation line. Can your equipment be used online? |
The equipment supports single machine and online use. When using online, different timing and pattern can be output by calling the device through the upper computer instruction. |
Q6: How to realize communication when using online? |
Open network port, RS232 interface, and PC interaction. |
Q7: Does the equipment need to be upgraded regularly and how? |
Our company will optimize the equipment regularly, and the updated bits will be put on the official website, so that the bits can be upgraded directly through the network port. |
Q8: Is it convenient to repair damaged equipment? Do you charge for it? |
Our products are mass produced products with reliable quality. All products are guaranteed for one year except man-made malicious damage, and the after-sale fee after one year depends on the damage. |
Q9: Does it support HDR, MST, HDCP, AUDIO? |
Supports HDR, MST, AUDIO, and HDCP1.X/2.X. |
Q10: What is the reliability of the interface board? |
Reliable quality, does not belong to the wear and tear parts, long service cycle. |
Q11: How can manual operation be achieved with such a small volume? |

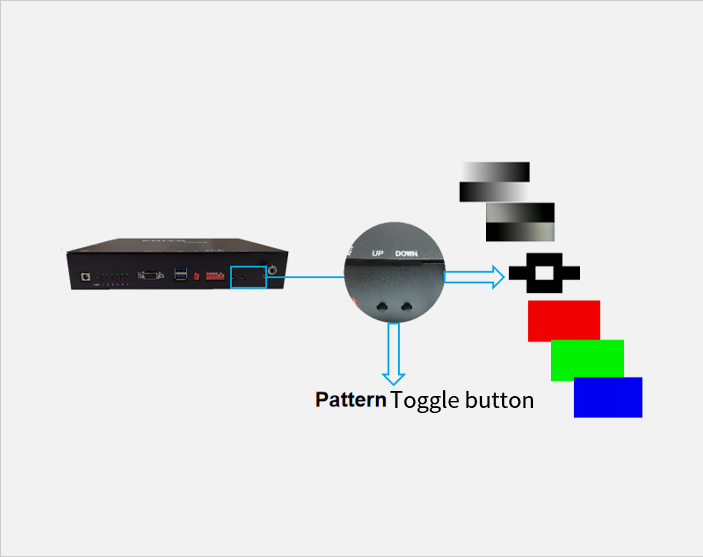

The modified product is mainly designed for automatic line body. pattern and timing can be adjusted by the black button on the box. If manual operation is needed, we recommend our PG8S to you, which can be operated by screen. |
>
