8K&60Hz SHV signal generator
Uhd video signal generator automatic and manual operation mode to adapt to a variety of video interfaces in production lines
 |
|
|  |
Asynchronous copy CTO/BTO switchover
Plug and copy without waiting
Each interface is equipped with a mapped storage disk, and each interface works independently to realize asynchronous copy
 |  |
Easy to switch between manual and automatic modes

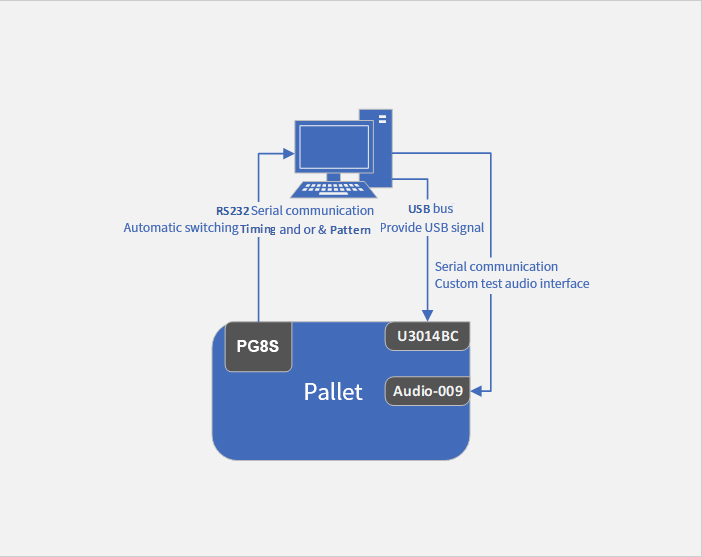

Automated testing Fully automated testing can be achieved by following the pallet streamline
Manual testing Video interface functionality can be tested at a fixed station on the production line
 |  |

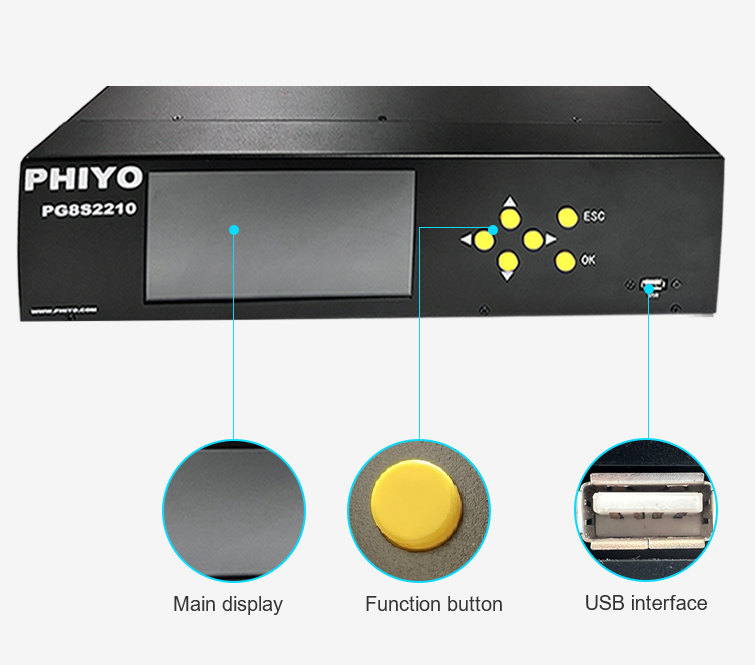

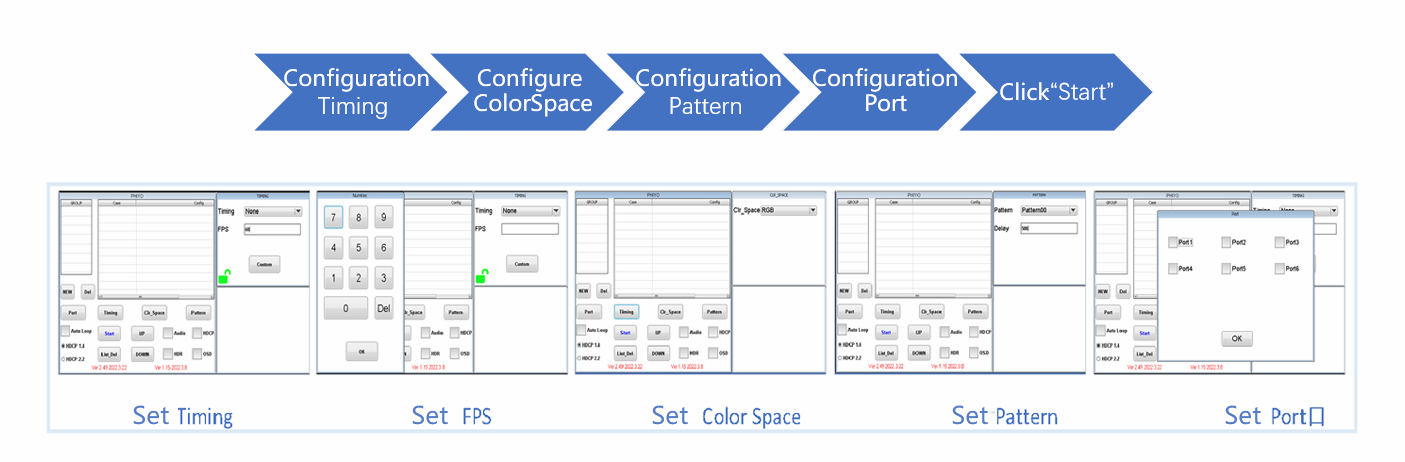

Visual interface configuration, 7 "touch screen operation

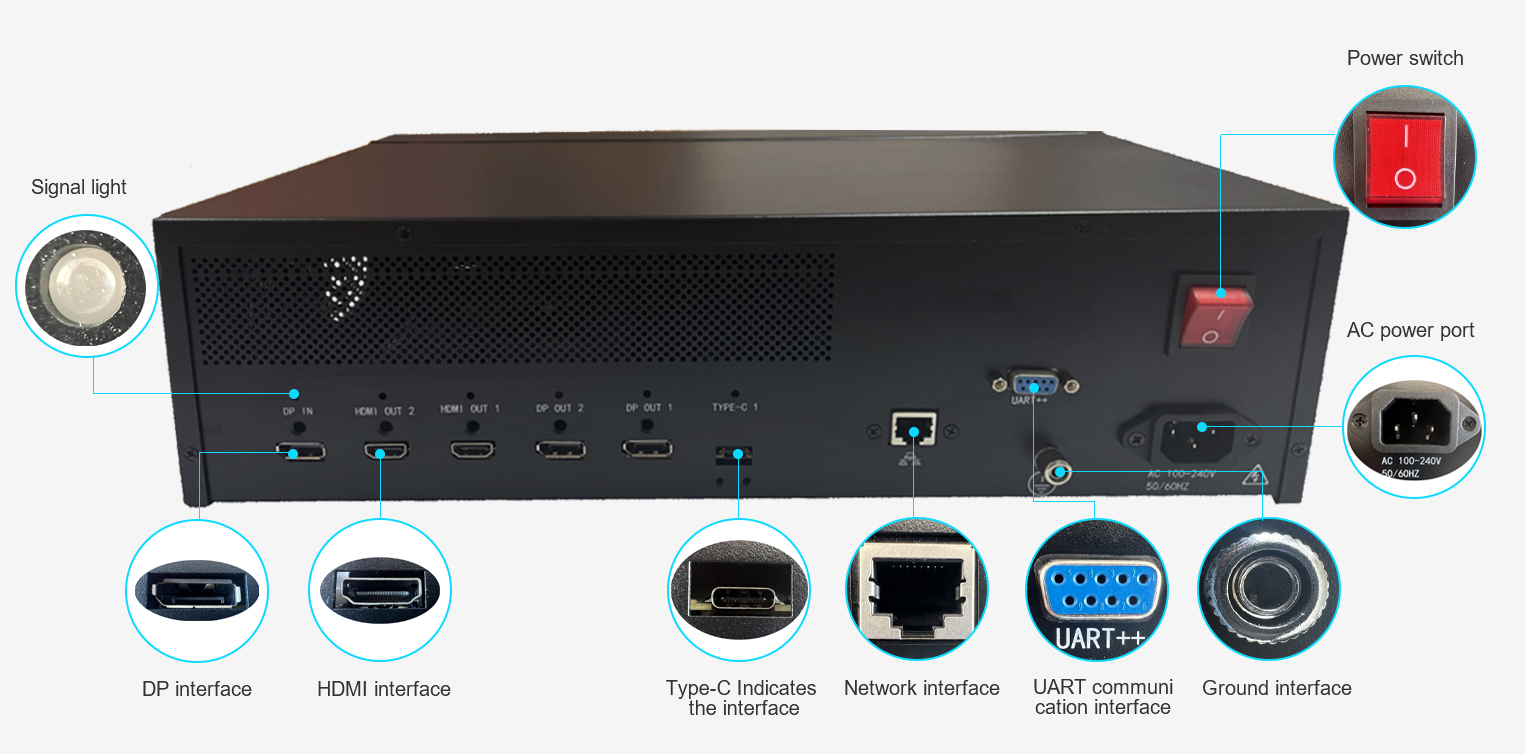

Equipped with three HD video ports to meet different requirements
Test requirements of the machine type

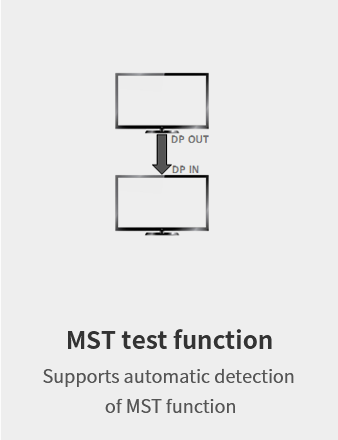

Multi-Stream Transport (MST) test function

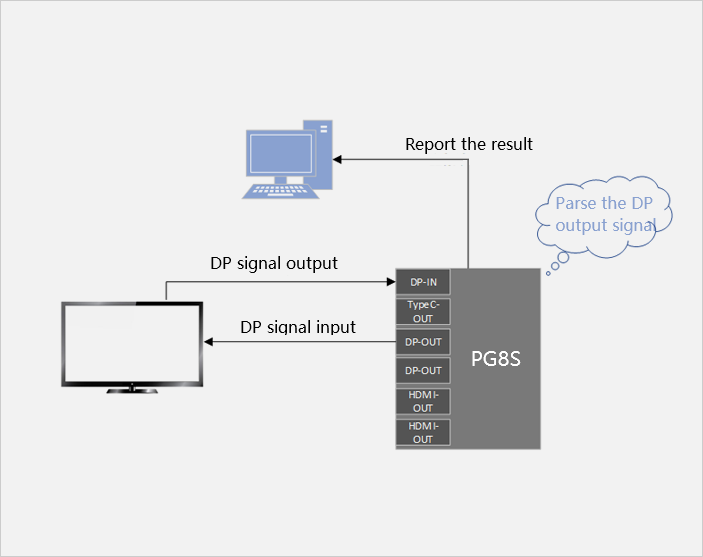

Automatic detection is realized through DP-IN
 |  |
 |  |
 | |
Product name: PG8S | Brand: PHIYO (PHIYO) |
Power consumption: 12W | Input voltage: 100-220V |
Output resolution: 8K@60Hz, 4K@240Hz (YUV420 output format), 8K@30Hz, 4K@120Hz (RGB888 output format) | Output format: RGB/YUV |
Color depth: 24Bit | Audio: 500Hz for the left channel and 1000Hz for the right channel |
HDMI: HDCP1.x&HDCP2.x | DP: HDCP1.x&HDCP2.x |
Title | Description |
Version Download |
Q1: How many interface outputs are supported? |
Supports output through Type-C, HDMI, and DP physical ports. |
Q2: Are interfaces and the number of interfaces fixed? Can you export it independently? |
A total of 5 output interfaces, support independent output; Each interface corresponds to an output board, which can be configured according to the needs of use. |
Q3: We will have a lot of special images during testing. Can you support them? |
Device built-in 32 screen, can meet most of the test, in addition to the native built-in storage, support arbitrary add target screen. |
Q4: Do you support 8K? |
Support multiple groups of resolution refresh rate, the highest support 8K@60Hz, 4K@240Hz (YUV420 output format), 8K@30Hz, 4K@120Hz (RGB888 output format). |
Q5: We are setting up the automation line. Can your equipment be used online? |
The equipment supports single machine and online use. When using online, different timing and pattern can be output by calling the device through the upper computer instruction. |
Q6: How to realize communication when using online? |
Open network port, RS232 interface, and PC interaction. |
Q7: Does the equipment need to be upgraded regularly and how? |
Our company will optimize the equipment regularly, and the updated bits will be put on the official website, so that the bits can be upgraded directly through the network port. |
Q8: Is it convenient to repair damaged equipment? Do you charge for it? |
Our products are mass produced products with reliable quality. All products are guaranteed for one year except man-made malicious damage, and the after-sale fee after one year depends on the damage. |
Q9: Does it support HDR, MST, HDCP, AUDIO? |
Supports HDR, MST, AUDIO, and HDCP1.X/2.X. |
Q10: What is the reliability of the interface board? |
Reliable quality, does not belong to the wear and tear parts, long service cycle. |
>
